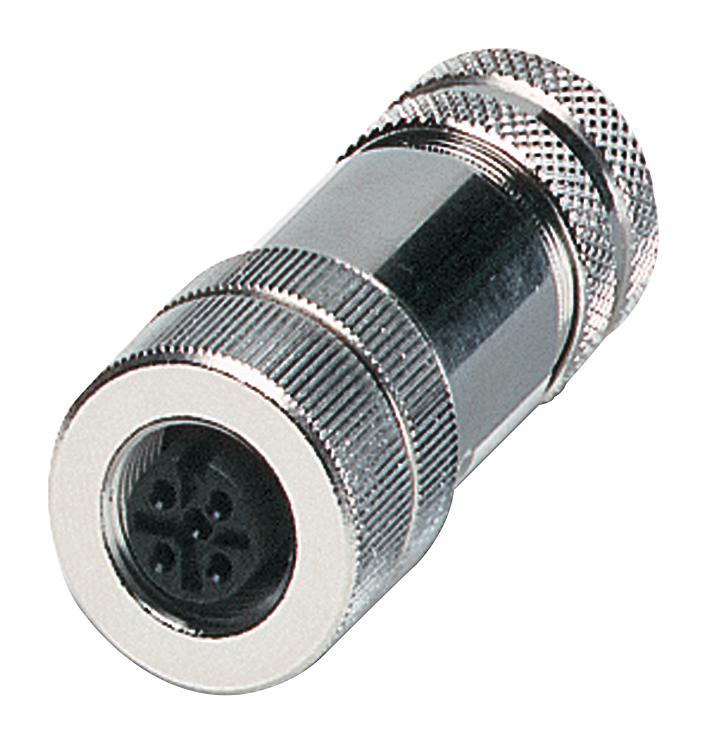

Phoenix Contact 1694295 Shielded M12 Connector
The SACC-M12FS-4CON-PG 7-SH is a shielded, 4-position M12 connector with straight socket design, suitable for industrial environments requiring reliable and protected signal transmission. It features a screw connection for secure installation, nickel-plated zinc die-cast knurls, and a cable gland compatible with 4 mm to 6 mm external cable diameters. Designed for use up to 85°C ambient temperature, this IP67-rated connector provides high contact resistance, electrical safety, and electromagnetic shielding, making it ideal for automation, machinery, and sensor applications with demanding environmental conditions.
Phoenix Contact 1694295 Shielded M12 Connector Specifications:
- Number of positions: 4
- Rated voltage: 60 VDC / 48 VAC
- Rated current: 4 A
- Insulation resistance: > 100 MQ
- Ambient temperature: -40 °C to 85 °C
- Degree of protection: IP67
- External cable diameter: 4 mm to 6 mm
- Stripping length of sheath: 35 mm
- Stripping length of wire: 5 mm
- Material: Zinc die-cast knurls, nickel-plated, PA contact carrier
- Contact material: CuZn with Au surface
- Sealing material: NBR
- Standards: IEC 61076-2-101, UL Recognized, cULus Recognized
Buy the Phoenix Contact 1694295 – Reliable Shielded Sensors for Industrial Applications
Upgrade your industrial sensor and automation systems with the reliable, shielded M12 connector. Featuring a screw connection, IP67 protection, and a robust zinc die-cast housing, this 4-pin connector ensures high-quality signal transmission in harsh environments. Its modular design supports easy installation with a cable diameter of 4 to 6 mm, making it suitable for various industrial applications. Trust this connector for durability, electromagnetic shielding, and versatile connection solutions that enhance operational efficiency and safety in demanding conditions.
Order your Phoenix Contact SACC-M12FS-4CON-PG 7-SH connector today and ensure secure, electromagnetic interference protected connections in your automation projects.
Frequently Asked Questions
Where can I buy Phoenix Contact 1694295?
You can click on the BUY or RFQ button to purchase 1694295 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1694295?
You can download the 1694295 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1694295?
Phoenix Contact
