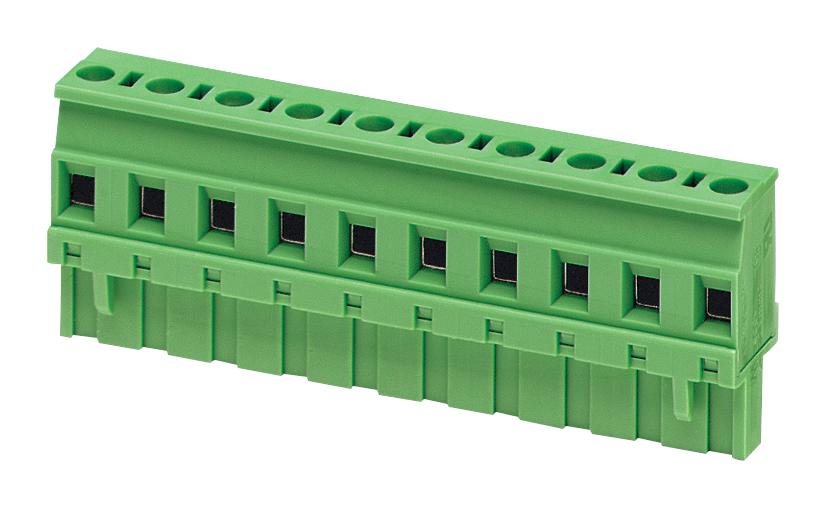

Phoenix Contact GMVSTBR254ST762 PCB Connector
The PHOENIX CONTACT GMVSTBR 2 5/ 4-ST-7 62 is a robust and reliable printed-circuit board connector suitable for a wide range of industrial applications, including automation, control systems, and power distribution. Its screw connection ensures a secure and stable connection, while the 7.62mm pitch allows for easy integration into existing PCB layouts. The connector is designed to handle a nominal current of 12A and a rated voltage of 630V, making it suitable for demanding environments. Constructed with durable PA insulating material and featuring a tin contact surface, this connector offers excellent performance and longevity.
Phoenix Contact GMVSTBR254ST762 PCB Connector Specifications:
- Nominal current: 12 A
- Rated voltage (III/2): 630 V
- Number of positions: 4
- Pitch: 7.62 mm
- Connection method: Screw connection
- Color: green
- Contact surface: Tin
- Dimension a: 22.86 mm
- Insulating material group: I
- Rated surge voltage (III/3): 6 kV
- Rated surge voltage (II/2): 6 kV
- Rated voltage (III/3): 500 V
- Rated voltage (II/2): 1000 V
- Connection in acc. with standard: EN-VDE
- Nominal cross section: 2.5 mm²
- Maximum load current: 12 A
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Stripping length: 7 mm
- Screw thread: M3
- Tightening torque, min: 0.5 Nm
- Tightening torque max: 0.6 Nm
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 2.5 mm²
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 2.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 2.5 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 12
- Minimum AWG according to UL/CUL: 30
- Maximum AWG according to UL/CUL: 12
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 9.84 g
- Custom tariff number: 85366990
- Country of origin: Germany
Buy the GMVSTBR 2 5/ 4-ST-7 62 PHOENIX CONTACT PCB Connector | myMectronic
Purchase the PHOENIX CONTACT GMVSTBR 2 5/ 4-ST-7 62 PCB Connector securely and efficiently through our online store.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact GMVSTBR254ST762?
You can click on the BUY or RFQ button to purchase GMVSTBR254ST762 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part GMVSTBR254ST762?
You can download the GMVSTBR254ST762 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of GMVSTBR254ST762?
Phoenix Contact
