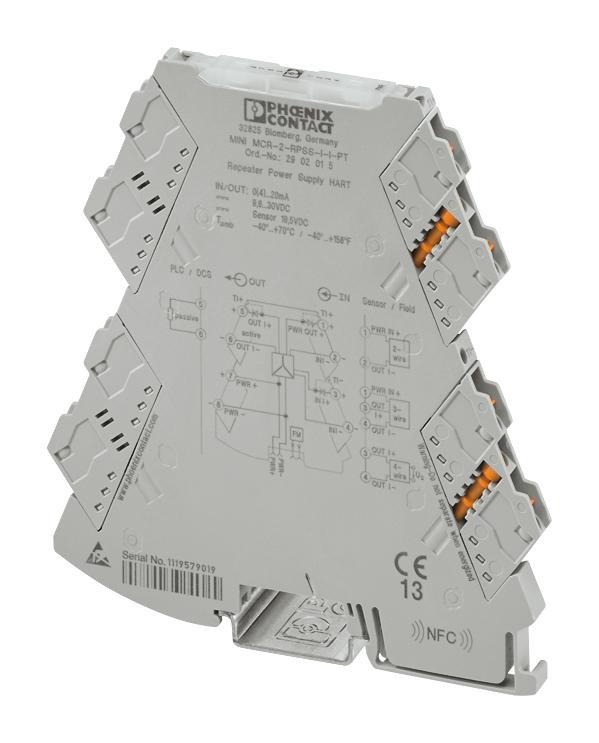

Phoenix Contact 2902015 Repeater Power Supply
The MINI MCR-2-RPSS-I-I-PT is a versatile 3-way repeater power supply with plug-in connection technology, designed for industrial automation. It provides electrically isolated 0(4)...20 mA or 4...(20) mA signals on input and output, supporting bidirectional HART data transmission. Suitable for both isolator and repeater operation, it features transient protection, reinforced insulation, and a wide ambient temperature range from -40°C to 70°C. Its compact size (6.2mm wide, 110.5mm high, 120.5mm deep) allows flexible mounting in harsh environments, meeting safety and EMC standards.
Phoenix Contact 2902015 Repeater Power Supply Specifications:
- Input Signal: 0(4)...20 mA or 4...(20) mA
- Output Signal: 0(4)...20 mA, max. load 600 Ω
- Nominal Supply Voltage: 24 V DC
- Supply Voltage Range: 9.6 V DC ... 30 V DC
- Maximum Power Consumption: < 1400 mW at 20 mA load
- Ambient Temperature (operation): -40°C to 70°C
- Dimensions: Width 6.2 mm, Height 110.5 mm, Depth 120.5 mm
- Housing Material: PBT, Color: Gray
- Electrical Isolation: Reinforced according to IEC 61010-1
- Protection Class: Class II, Pollution Degree 2
- Test Voltage: 3 kV between input/output/supply, 50 Hz, 1 min.
- Overvoltage Category: Cat. II with 300 V insulation
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-4
Buy the Buy Phoenix Contact Repeater Power Supply Part Number 2902015 Online
Purchase the Phoenix Contact MINI MCR-2-RPSS-I-I-PT online today and experience reliable signal isolation and HART transparency in industrial environments. This compact repeater power supply supports bidirectional communication, galvanic isolation, and wide temperature operation. Its plug-in connection technology simplifies installation, while its robust design ensures durability under harsh conditions. Ideal for automation systems requiring stable 0(4)...20 mA signals with maximum load capacity and integrated transient protection, making it a dependable choice for industrial control and measurement applications.
Order your Phoenix Contact MINI MCR-2-RPSS-I-I-PT today and enhance your automation system with a reliable, compact, and safe power isolation solution.
Frequently Asked Questions
Where can I buy Phoenix Contact 2902015?
You can click on the BUY or RFQ button to purchase 2902015 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2902015?
You can download the 2902015 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2902015?
Phoenix Contact
