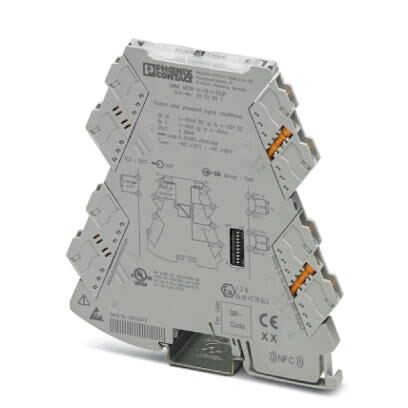

Phoenix Contact 2902061 Signal Isolator
The MINI MCR-2-UI-I-OLP is a versatile, loop-powered 2-way isolator designed for electrical isolation, conversion, and filtering of analog signals. It supports unipolar and bipolar inputs, configurable via DIP switches, with a wide input range from 2 mA or 50 mV up to 40 mA or 30 V. Powered through the current loop, it provides reliable signal conversion to 4 mA to 20 mA outputs. The device features screw connection technology and standard configuration, suitable for industrial environments with an operating temperature range of -40°C to 70°C.
Phoenix Contact 2902061 Signal Isolator Specifications:
- Dimensions: Not specified, suitable for DIN rail mounting
- Input Signal Range: 2 mA or 50 mV up to 40 mA or 30 V
- Output Signal: 4 mA to 20 mA
- Ripple: < 10 MVms at 600 Q
- Supply Voltage: 8 V DC to 30 V DC (no separate supply needed)
- Ambient Temperature (Operation): -40 °C to 70 °C
- Ambient Temperature (Storage/Transport): -40 °C to 85 °C
- Degree of Protection: IP20
- Connection Technology: Screw terminal connection, stripping length 10 mm
- Number of Channels: 1
- Material: Not specified, standard industrial quality
- EMC Compliance: Class A (see manufacturer's declaration)
Buy the Phoenix Contact Series MINI MCR-2-UI-I-OLP: 2902061
Purchase the Phoenix Contact MINI MCR-2-UI-I-OLP online today and experience high-quality electrical isolation and signal conversion for industrial automation. Designed with plug-in connection technology, it ensures secure and easy installation. This loop-powered integration supports a wide input range, configurable via DIP switches, and provides a stable 4 to 20 mA output. Its rugged design is suitable for demanding environments with temperatures from -40°C to 70°C. Buy online now for fast delivery and maximum operational reliability.
Get Phoenix Contact MINI MCR-2-UI-I-OLP today—built for industrial signal isolation and reliable analog signal conversion.
Frequently Asked Questions
Where can I buy Phoenix Contact 2902061?
You can click on the BUY or RFQ button to purchase 2902061 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2902061?
You can download the 2902061 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2902061?
Phoenix Contact
