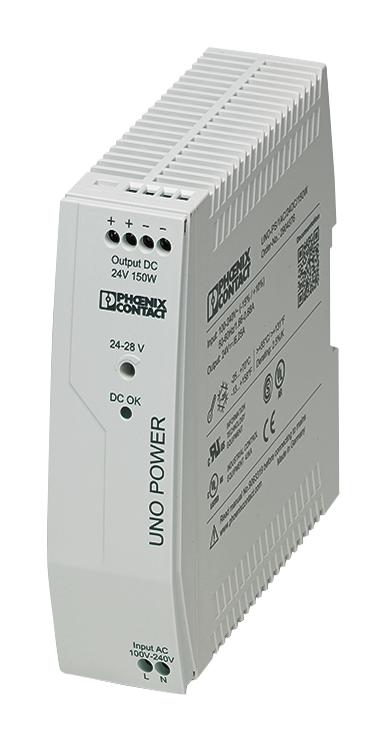

Phoenix Contact 2904376 Industrial Power Supply
The UNO-PS/1AC/24DC/150W power supply provides reliable 24V DC output with 150W power capacity, designed for DIN rail mounting in control cabinets. It features high efficiency over 94%, wide operating temperature from -25°C to 70°C, and low idling losses below 0.3 W, making it energy-efficient and suitable for industrial automation. The compact design with dimensions 37mm width, 130mm height, and 125mm depth allows flexible installation. It supports screw connection terminals and complies with multiple international safety and EMC standards, ensuring safe and stable power delivery in diverse environments.
Phoenix Contact 2904376 Industrial Power Supply Specifications:
- Dimensions: Width 37mm, Height 130mm, Depth 125mm
- Operating temperature: -25°C to 70°C, Derating: 2.5%/K above 55°C
- Input voltage: 85 VAC to 264 VAC, 45 Hz to 65 Hz, Current: 1.4 A at 120 V AC, 0.8 A at 230 V AC
- Nominal output voltage: 24VDC, Setting range: 24VDC to 28VDC, Output current: 6.25A at -25°C to 55°C
- Efficiency: > 94%, Power output: 150W, Ripple: < 40 mVpp, Insulation voltage: 4kVAC
- Protection: Transient surge protection, Mounting: Horizontal DIN rail (EN 60715), Conductor cross section: 0.2 – 2.5 mm², Screw thread: M3
- Standards: EN 61000-6-2, EN 61000-4 series, UL 60950, UL 508, CB Scheme, compliant with Low Voltage Directive 2006/95/EC
Buy the Phoenix Contact Series UNO Power: UNO-PS/1AC/24DC/150W
Order the Phoenix Contact UNO-PS/1AC/24DC/150W power supply online today and experience a compact, highly efficient device designed for industrial control cabinets. Its robust construction and wide operating temperature range from -25°C to 70°C ensure dependable performance in demanding environments. With a power output of 150W and low ripple voltage, this power supply guarantees stable voltage regulation for sensitive automation components. Easy to install on DIN rails, it features screw terminals for secure connections, complies with international safety standards, and is ideal for energy-efficient industrial applications.
Get Phoenix Contact UNO-PS/1AC/24DC/150W today—built for reliable industrial automation power delivery.
Frequently Asked Questions
Where can I buy Phoenix Contact 2904376?
You can click on the BUY or RFQ button to purchase 2904376 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2904376?
You can download the 2904376 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2904376?
Phoenix Contact
