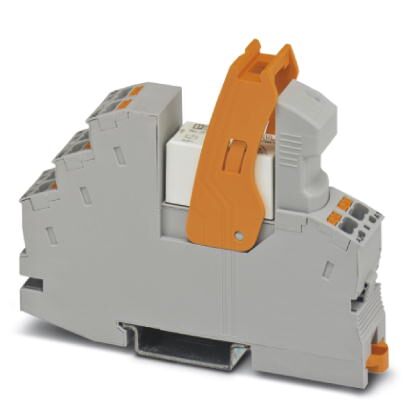

Phoenix Contact 2906224 Relay Module
A pre-assembled relay module equipped with push-in connections, comprising a relay base, a power contact relay, a plug-in display or suppressor module, and a retaining bracket. The relay features a single-pole double-throw (PDT) contact type and operates at an input voltage of 12 V DC. Designed for ease of mounting and reliable operation, this relay module supports continuous operation in temperatures ranging from -40°C to 70°C, with storage capabilities up to 85°C. It conforms to safety standards and is suitable for industrial automation systems requiring switching and control functions.
Phoenix Contact 2906224 Relay Module Specifications:
- Type: Relay module with push-in connection
- Contact Type: Single pole double throw (PDT)
- Input Voltage: 12 V DC
- Ambient Temperature (Operation): -40°C to 70°C
- Ambient Temperature (Storage/Transport): -40°C to 85°C
- Power Contact Relay: Included
- Mounting: On NS 35/7.5
- Includes: Relay base, display/suppressor module, retaining bracket
- Standards: Meets safety and environmental regulations
- Protective Circuit: Damping diode
- Input connection: Ferrules 0.14 mm² to 1.5 mm² with plastic sleeves
- Output connection: Ferrules 0.14 mm² to 1 mm² with plastic sleeves
- Mechanical features: Plug-in design, ejector function, holder for marking material
- Enclosure: suitable for industrial environments
Buy the Phoenix Contact Series RIF-1-RPT-LDP-12DC/1X21: Relay Module 2906224
Order the Phoenix Contact relay module RIF-1-RPT-LDP-12DC/1X21 online today. This reliable, pre-assembled module offers easy push-in connection, a single-pole double-throw contact, and operates at 12 V DC. Designed for industrial automation, it withstands temperatures from -40°C to 70°C during operation and up to 85°C during storage. Suitable for mounting on NS 35/7.5, it includes a relay base, suppressor, display, and retaining bracket. Easy to install and highly durable, it's essential for control and switching tasks in automation systems.
Get Phoenix Contact RIF-1-RPT-LDP-12DC/1X21 today—built for reliable switching and industrial automation with durable push-in connections.
Frequently Asked Questions
Where can I buy Phoenix Contact 2906224?
You can click on the BUY or RFQ button to purchase 2906224 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2906224?
You can download the 2906224 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2906224?
Phoenix Contact
