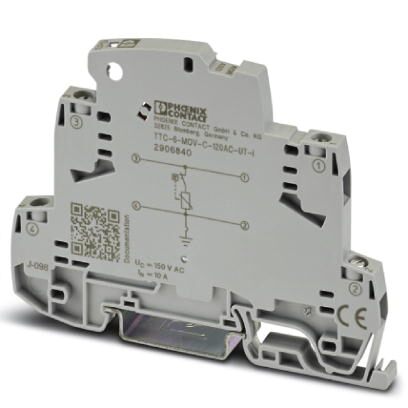

Phoenix Contact 2906840 Surge Protector
This medium surge protection device offers reliable signal wire protection with an integrated mechanical status indicator, eliminating the need for additional power and saving space due to its narrow 6.2 mm width. It features a disconnect device for overload safety, uses varistor technology for surge absorption, and is mountable on a DIN rail. Suitable for industrial environments, it operates over a wide temperature range of -40°C to 85°C, complies with IEC standards, and is UL listed, making it ideal for protecting sensitive signal circuits from transient voltage surges.
Phoenix Contact 2906840 Surge Protector Specifications:
- Dimensions: Width 6.2 mm, suitable for DIN rail mounting
- Ambient temperature (operation): -40°C to 85°C
- Ambient temperature (storage/transport): -40°C to 85°C
- Protection class: IP20 with end cover
- Rated current: 10 A at 60°C
- Nominal discharge current (8/20 μs): specified for surge absorption
- Conductor cross section: 0.2 mm² to 2.5 mm² (flexible), AWG 24 to 12
- Line-Earth protection, Disconnection device for overload safety
- Standards: IEC 61643-21, EN 61643-21, UL Listed, CSA, DNV GL approval
- Altitude: < 2000 m above sea level
Buy the Buy Phoenix Contact Surge Protection Device Part Number 2906840 Online
Secure your industrial signal circuits by ordering this reliable surge protection device online. Featuring integrated status indicators for easy monitoring, this compact unit mounts easily on DIN rails and provides safe protection against voltage surges in diverse environments. Its overload disconnect feature ensures safety, while wide temperature compatibility guarantees performance in harsh conditions. UL listed and compliant with international standards, this surge protector is an essential component for safeguarding electronic systems effectively and ensuring dependable operation in your projects.
Order your Phoenix Contact Surge Protection Device 2906840 today and enhance your signal integrity with reliable transient voltage suppression.
Frequently Asked Questions
Where can I buy Phoenix Contact 2906840?
You can click on the BUY or RFQ button to purchase 2906840 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2906840?
You can download the 2906840 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2906840?
Phoenix Contact
