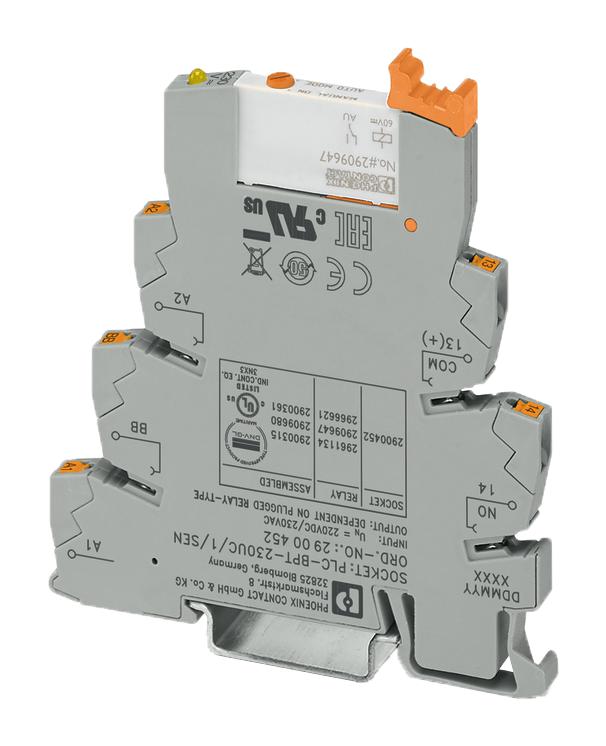

Phoenix Contact 2909680 Industrial Automation Relay
The relay module offers input functions for PLC systems with a 1 N/O contact operated at 230 V AC or 220 V DC. Its compact design measures 6.2 mm in width, 80 mm in height, and 94 mm in depth. Featuring a single gold-plated contact, it provides a response time of 7 ms and a release time of 15 ms. Suitable for DIN rail mounting, it is designed for industrial automation, with an operational temperature range from -40°C to 55°C and an is solid-state relay compatible, durable for continuous operation.
Phoenix Contact 2909680 Industrial Automation Relay Specifications:
- Dimensions: 6.2 mm width, 80 mm height, 94 mm depth
- Input Voltage: 230 VAC / 220 V DC
- Input current: 3.2 mA
- Response time: 7 ms
- Release time: 15 ms
- Contact type: 1 N/O contact
- Contact material: AgSnO, hard gold-plated
- Maximum switching voltage: 30 VAC, 36 VDC
- Minimum switching voltage: 100 mV at 10 mA
- Minimum switching current: 1 mA at 24 V
- Maximum continuous current: 50 mA
- Power dissipation: 0.74 W
- Ambient temperature operation: -40°C to 55°C
- Degree of protection: RT II
- Test voltage relay winding/contact: 4 kV AC (50 Hz, 1 min.)
- Mounting: DIN rail, any position
- Standards: IEC 60664, IEC 60255, DIN VDE 0110
- Environmental compliance: CE, China RoHS
Buy the Phoenix Contact Series ED Gen: PLC-RPT-230UC Relay Module
Purchase the Phoenix Contact PLC-RPT-230UC relay module online today for reliable input switching in industrial automation systems. Designed for DIN rail mounting, it features a compact size of 6.2 mm width, 80 mm height, and 94 mm depth, with a response time of just 7 ms. Its gold-plated contact ensures durability and consistent performance at up to 230 V AC/DC. Perfect for automation control, the relay provides a power dissipation of 0.74 W and operates in temperatures from -40°C to 55°C, offering long-lasting reliability.
Get Phoenix Contact PLC-RPT-230UC today—built for industrial automation, durable relay switching with quick response times.
Frequently Asked Questions
Where can I buy Phoenix Contact 2909680?
You can click on the BUY or RFQ button to purchase 2909680 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2909680?
You can download the 2909680 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2909680?
Phoenix Contact
