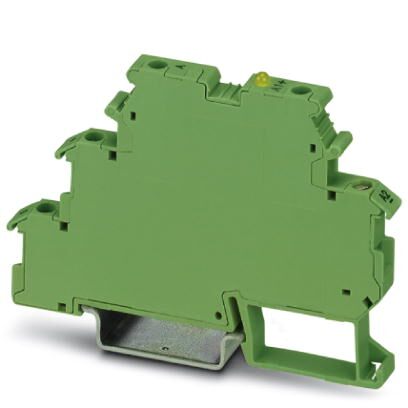

Phoenix Contact 2964555 Solid-State Relay Terminal Block
The PHOENIX CONTACT DEK-OE series solid-state relay terminal block (part number 2964555) provides a robust and reliable solution for various industrial automation and control applications. It utilizes solid-state technology for silent and spark-free switching, offering advantages over traditional electromechanical relays. The block features a 5V DC input voltage range, a 14-30V DC output voltage range, and a maximum transmission frequency of 100 kHz. It incorporates a push-pull stage for versatile output configurations and includes protective circuits for both input and output, enhancing system reliability. The integrated LED indicator provides visual feedback on the relay's status. Its compact design and screw-type connections facilitate easy integration into existing control systems. Suitable for applications requiring high-speed switching and reliable performance.
Phoenix Contact 2964555 Solid-State Relay Terminal Block Specifications:
- Packing unit: 1 pc
- GTIN: None
- Weight per Piece (excluding packing): 24.44 g
- Custom tariff number: 85364190
- Country of origin: China
- Nominal input voltage UN: 5 V DC
- Input voltage range in reference to UN: 0.5 ... 1.2
- Switching threshold "0" signal in reference to UN: ≤ 0.3
- Switching threshold "1" signal in reference to UN: ≥ 0.5
- Typical input current at UN: 8 mA
- Typical response time: 1 µs
- Typical turn-off time: 2 µs
- Operating voltage display: Yellow LED
- Type of protection: Protection against polarity reversal
- Surge protection: None
- Protective circuit/component (input): Polarity protection diode
- Transmission frequency: 100 kHz
- Output voltage range: 14 V DC ... 30 V DC
- Limiting continuous current: 50 mA
- Quiescent current: 15 mA
- Voltage drop at max. limiting continuous current: ≤ 2.2 V DC
- Output circuit: 3-conductor push-pull, ground referenced
- Protective circuit/component (output): Suppressor diode
- Connection name (input): Input side
- Connection method (input): Screw connection
- Stripping length (input): 8 mm
- Screw thread (input): M3
- Conductor cross section solid (input): 0.2 mm² ... 4 mm²
- Conductor cross section flexible (input): 0.2 mm² ... 2.5 mm²
- Conductor cross section AWG (input): 24 ... 12
- Torque (input): 0.5 Nm
- Connection name (output): Output side
- Connection method (output): Screw connection
- Stripping length (output): 8 mm
- Screw thread (output): M3
- Conductor cross section solid (output): 0.2 mm² ... 4 mm²
- Conductor cross section flexible (output): 0.2 mm² ... 2.5 mm²
- Conductor cross section AWG (output): 24 ... 12
- Torque (output): 0.5 Nm
- Test voltage input/output: 2.5 kV AC
- Mounting position: any
- Assembly instructions: In rows with zero spacing
- Operating mode: 100% operating factor
- Standards/regulations (1): IEC 60664
- Standards/regulations (2): EN 50178
- Standards/regulations (3): IEC 62103
- Rated surge voltage/insulation: Basic insulation
- Degree of pollution: 2
- Overvoltage category: II
- eCl@ss 4.0: 27371102
- eCl@ss 4.1: 27371102
- eCl@ss 5.0: 27371001
- eCl@ss 5.1: 27371001
- eCl@ss 6.0: 27371001
- eCl@ss 7.0: 27371001
- eCl@ss 8.0: 27371604
- ETIM 2.0: EC001504
- ETIM 3.0: EC001504
- ETIM 4.0: EC001504
- ETIM 5.0: EC001504
- UNSPSC 6.01: 30211916
- UNSPSC 7.0901: 39121542
- UNSPSC 11: 39121542
- UNSPSC 12.01: 39121542
- UNSPSC 13.2: 39121542
- Utilization restriction: EMC: class A product, see manufacturer's declaration
