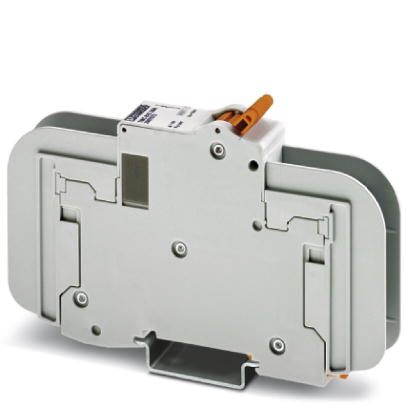

Phoenix Contact 2907558 Thermomagnetic Device Circuit Breaker
The Phoenix Contact TMC 81C 01A thermomagnetic device circuit breaker is a compact and reliable solution for overcurrent protection in industrial applications. Designed for mounting on 35mm DIN rails, this circuit breaker offers a 1A rated current and a 10kA short-circuit switching capacity, ensuring effective protection against overload and short circuits. Its gray color and single-position design make it suitable for a wide range of electrical circuits, contributing to the safety and efficiency of industrial equipment and systems. The device is UL Listed and cUL Listed, demonstrating compliance with recognized safety standards.
Phoenix Contact 2907558 Thermomagnetic Device Circuit Breaker Specifications:
- Mounting type: DIN rail: 35 mm
- Color: gray
- Number of positions: 1
- Operating voltage: 120 V AC (277 V AC) / 60 V DC
- Rated current IN: 1 A
- Rated short-circuit switching capacity Icn: 10 kA (IC)
- Height: 116 mm
- Width: 17.6 mm
- Depth: 65.7 mm
- Ambient temperature (operation): -35 °C ... 70 °C
- Standards and Regulations: UL 489 IEC 60947-2
- Packing unit: 1 pc
- GTIN: 4055626214986
- Weight per Piece (excluding packing): 150.000 g
- Country of origin: China
- eCl@ss 4.0: 27141116
- eCl@ss 4.1: 27141116
- eCl@ss 5.0: 27141116
- eCl@ss 5.1: 27141100
- eCl@ss 6.0: 27141100
- eCl@ss 7.0: 27141116
- eCl@ss 8.0: 27141116
- eCl@ss 9.0: 27141116
- ETIM 3.0: EC000899
- ETIM 4.0: EC000899
- ETIM 5.0: EC000899
- ETIM 6.0: EC000899
- ETIM 7.0: EC000899
- UNSPSC 6.01: 30211812
- UNSPSC 7.0901: 39121411
- UNSPSC 11: 39121411
- UNSPSC 12.01: 39121411
- UNSPSC 13.2: 39121620
- UL Listed: FILE E 320373
- cUL Listed: FILE E 320373
- cULus Listed: FILE E 320373
