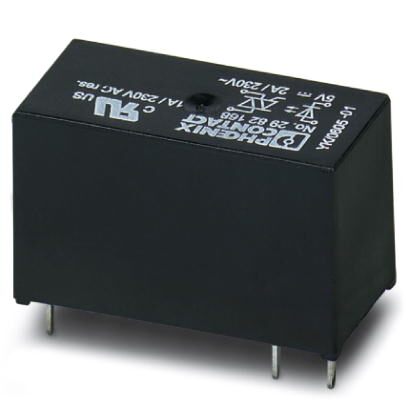

Phoenix Contact 2982168 Miniature Solid-State Relay
This plug-in miniature solid-state relay provides reliable switching with a 1 N/O contact, an input of 5 V DC, and an output range of 24 to 253 V AC capable of handling 2 A. Vibration, shock, and wash-proof, it ensures durability and long-term performance in automation systems. The relay operates at ambient temperatures from -25°C to 60°C and is compliant with UL, cUL, and EAC standards. Its compact dimensions and screw or spring-cage connections make it ideal for PCB mounting in industrial environments.
Phoenix Contact 2982168 Miniature Solid-State Relay Specifications:
- Input Voltage: 5 V DC
- Output Voltage Range: 24 - 253 V AC
- Output Current: 2 A
- Switching Type: Zero voltage switch at AC output
- Operating Temperature: -25°C to +60°C
- Storage/Transport Temperature: -25°C to +70°C
- Degree of Protection: Wash-proof (RT Ill)
- Test Voltage Input/Output: 2.5 kV (50 Hz, 1 min.)
- Dimensions: Not specified, designed for PCB mounting
- Standards: UL Recognized, cUL Recognized, UL Listed, EAC
- Environmental Compliance: China RoHS, Environmentally Friendly Use Period = 50
- Certification: UL, cUL, EAC approvals
Buy the Phoenix Contact Series OPT- 5DC/230AC/ 2: 2982168
Purchase the Phoenix Contact OPT- 5DC/230AC/ 2 miniature solid-state relay online today. Designed for reliable switching with a 5 V DC input, it supports load voltages from 24 to 253 V AC and currents up to 2 A. Its compact design ensures easy PCB mounting and durability with wash-proof, shock, and vibration resistance. Perfect for automation, control systems, and industrial applications, this relay offers UL, cUL, and EAC certification, making it a trusted choice for demanding environments. Order now for efficient and long-lasting performance.
Get Phoenix Contact OPT- 5DC/230AC/ 2 today—built for reliable switching and long-lasting durability in automation systems.
Frequently Asked Questions
Where can I buy Phoenix Contact 2982168?
You can click on the BUY or RFQ button to purchase 2982168 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2982168?
You can download the 2982168 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2982168?
Phoenix Contact
