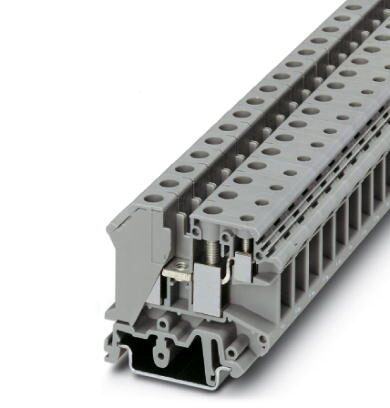

Phoenix Contact 3001381 Feed-through Terminal Block
The Phoenix Contact UK 10-PLUS feed-through terminal block is a versatile solution for potential branching in electrical control cabinets. Its universal foot allows for flexible mounting on NS 35 or NS 32 DIN rails. The block supports a wide range of conductor sizes, from 0.5 to 16 mm², and accommodates AWG 24 to 6 wiring. It's ideal for applications requiring reliable and efficient conductor connections in industrial automation and control systems. The terminal block's design facilitates easy bridging and connection of different conductor types, simplifying installation and maintenance.
Phoenix Contact 3001381 Feed-through Terminal Block Specifications:
- Number of levels: 2
- Number of connections: 3
- Nominal cross section: 10 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 8 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Connection in acc. with standard: IEC 60947-7-1
- Maximum load current: 76 A
- Nominal current IN: 57 A
- Nominal voltage UN: 800 V
- Maximum load current (smaller conductor): 41 A
- Nominal current IN (smaller conductor): 32 A
- Open side panel: No
- Conductor cross section solid min: 0.5 mm²
- Conductor cross section solid max: 16 mm²
- Conductor cross section AWG min: 24
- Conductor cross section AWG max: 6
- Conductor cross section flexible min: 0.5 mm²
- Conductor cross section flexible max: 10 mm²
- Stripping length: 11 mm
- Screw thread: M4
- Tightening torque, min: 1.5 Nm
- Tightening torque max: 1.8 Nm
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 21.8 g
- Custom tariff number: 85369010
- Country of origin: Poland
- eCl@ss 4.0: 27141120
- eCl@ss 4.1: 27141120
- eCl@ss 5.0: 27141120
- eCl@ss 5.1: 27141120
- eCl@ss 6.0: 27141120
- eCl@ss 7.0: 27141120
- eCl@ss 8.0: 27141120
- eCl@ss 9.0: 27141120
- ETIM 2.0: EC000897
- ETIM 3.0: EC000897
- ETIM 4.0: EC000897
- ETIM 5.0: EC000897
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
Buy the 3001381 PHOENIX CONTACT Feed-through Terminal Block | myMectronic
Securely purchase the Phoenix Contact UK 10-PLUS terminal block online for reliable performance in your industrial applications.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact 3001381?
You can click on the BUY or RFQ button to purchase 3001381 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3001381?
You can download the 3001381 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3001381?
Phoenix Contact
