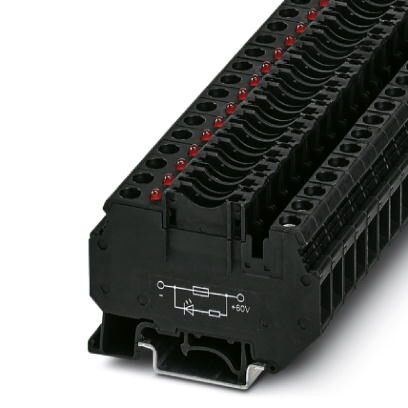

Phoenix Contact 3001939 Fuse Modular Terminal Block
The PHOENIX CONTACT UK 6-FSI/C-LED60 fuse modular terminal block provides a safe and reliable connection for flat-type fuses. It's designed for use in various industrial applications, including power distribution and control systems. The integrated LED indicator allows for quick visual identification of fuse status. This terminal block supports a wide range of conductor sizes and voltages, making it versatile for different circuit requirements. It is compatible with DIN rails and offers secure connections with a tightening torque of 1.5-1.8 Nm.
Phoenix Contact 3001939 Fuse Modular Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 2
- Nominal cross section: 6 mm²
- Color: black
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Maximum power dissipation for nominal condition: 1.31 W
- Fuse: C
- Fuse type: Flat
- Rated surge voltage: 4 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum current with single arrangement: 30 A
- Voltage LED: 60 V DC
- Current LED: 2 mA
- Connection in acc. with standard: IEC 60947-7-3
- Maximum load current: 30 A
- Nominal current IN: 30 A
- Nominal voltage UN: 250 V
- Relative insulation material temperature index (Elec., UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130 °C
- Static insulating material application in cold: -60 °C
- Width: 8.2 mm
- Length: 64 mm
- Height NS 35/7,5: 52 mm
- Height NS 35/15: 59.5 mm
- Height NS 32: 57 mm
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 10 mm²
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 6 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 8
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 6 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 4 mm²
- 2 conductors with same cross section, solid min.: 0.2 mm²
- 2 conductors with same cross section, solid max.: 2.5 mm²
- 2 conductors with same cross section, stranded min.: 0.2 mm²
- 2 conductors with same cross section, stranded max.: 2.5 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.: 0.25 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.: 2.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 4 mm²
- Connection method: Screw connection
- Stripping length: 10 mm
- Internal cylindrical gage: A5
- Screw thread: M4
- Tightening torque, min: 1.5 Nm
- Tightening torque max: 1.8 Nm
- China RoHS: Environmentally Friendly Use Period = 50
