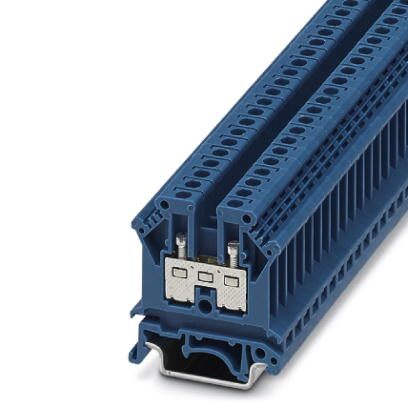

Phoenix Contact 3003091 feed-through terminal block
This feed-through terminal block is designed for electrical connections with a nominal voltage of 800 V and a nominal current of 32 A. It features a screw connection method with two connection points, suitable for wire cross-sections between 0.2 mm² and 4 mm² (AWG 24 to 12). The terminal block has a width of 6.2 mm, is color-coded blue, and is compatible with mounting types NS 35/7.5, NS 35/15, and NS 32. It provides reliable, secure connections for industrial automation and control systems, ensuring consistent performance and easy installation.
Phoenix Contact 3003091 feed-through terminal block Specifications:
- Nominal voltage: 800 V
- Nominal current: 32 A
- Connection method: Screw connection
- Number of connection points: 2
- Wire cross-section: 0.2 mm² to 4 mm² (AWG 24 to 12)
- Width: 6.2 mm
- Color: Blue
- Mounting types: NS 35/7.5, NS 35/15, NS 32
- Certifications: CSA Recognized, cUL Recognized, GL, DNV, RS, EAC
Buy the Phoenix Contact Series UK 4 BU: 3003091
Experience secure and reliable electrical connections with the Phoenix Contact feed-through terminal block. Designed for 800 V and 32 A, it features a screw connection method with two connection points, suitable for wire sizes from 0.2 mm² to 4 mm² (AWG 24-12). Its compact width of 6.2 mm and blue color coding make it easy to install and identify. Compatible with multiple mounting types including NS 35/7.5, NS 35/15, and NS 32, ensuring versatility for industrial automation and control applications. Order online now for quality and efficiency.
Get Phoenix Contact 3003091 today—built for secure electrical connections and industrial automation reliability.
Frequently Asked Questions
Where can I buy Phoenix Contact 3003091?
You can click on the BUY or RFQ button to purchase 3003091 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3003091?
You can download the 3003091 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3003091?
Phoenix Contact
