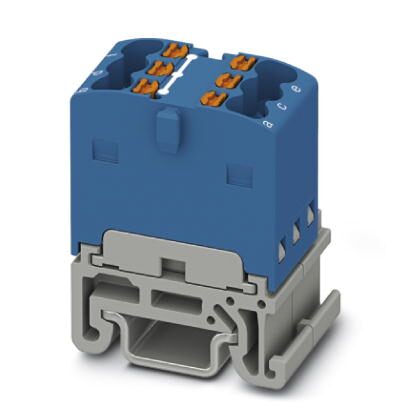

Phoenix Contact 3002919 Distribution Block
This is a blue distribution block with internal bridging capability, allowing multiple blocks to be connected via a conductor shaft. It features six push-in connections suitable for wire cross-sections between 0.14 mm² and 2.5 mm² (AWG 26 to 14). The device supports a nominal voltage of 500 V and a current of 17.5 A. Its width is 12.5 mm and it is mounted using NS 15 mounting type. For additional plug-in bridges, refer to the accessories section.
Phoenix Contact 3002919 Distribution Block Specifications:
- Nominal voltage: 500 V
- Nominal current: 17.5 A
- Number of connections: 6
- Connection method: Push-in
- Wire cross section: 0.14 mm² - 2.5 mm² (AWG 26 - 14)
- Width: 12.5 mm
- Mounting type: NS 15
- Color: Blue
- Bridging: Internal conductor shaft
- Test openings: At every terminal point
- Standards and certifications: CSA / UL Recognized / cUL Recognized / cULus Recognized
Buy the Phoenix Contact Series PTFIX Distribution Block: 3002919
Purchase the Phoenix Contact distribution block online today to ensure a reliable, space-saving wiring connection solution. Its compact design features six push-in terminals, supporting wire cross sections from 0.14 to 2.5 mm². Suitable for DIN rail mounting, it offers internal bridging via conductor shafts for flexible configurations. Designed to handle 500 V and 17.5 A, this distribution block is ideal for industrial automation, control panels, and building installations. Easy to install and highly reliable, it ensures efficient wiring management for professional applications.
Get Phoenix Contact 3002919 today—built for reliable distribution and easy modular wiring solutions.
Frequently Asked Questions
Where can I buy Phoenix Contact 3002919?
You can click on the BUY or RFQ button to purchase 3002919 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3002919?
You can download the 3002919 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3002919?
Phoenix Contact
