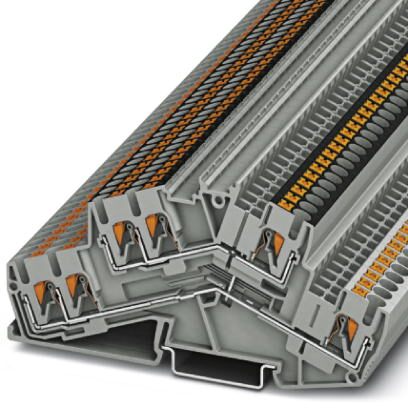

Phoenix Contact 3210603 Double Level Terminal Block
The PHOENIX CONTACT PTTBS 2,5-TWIN-PV is a double-level terminal block designed for efficient and reliable connections in various industrial applications. Its compact design allows for wiring in confined spaces, while the push-in connection simplifies installation and reduces downtime. The terminal block supports a wide range of conductor sizes, from 0.14 to 4 mm², and is compatible with NS 35/7.5 and NS 35/15 mounting rails. It offers enhanced safety features, including finger and back-of-hand protection, and is designed to meet stringent industry standards for flammability, insulation, and electrical performance. This terminal block is ideal for applications requiring high current carrying capacity and robust performance in demanding environments.
Phoenix Contact 3210603 Double Level Terminal Block Specifications:
- Number of levels: 2
- Number of connections: 6
- Nominal cross section: 2.5 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 8 kV
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation for nominal condition: 0.77 W
- Ambient temperature (operation): -60 °C ... 85 °C
- Ambient temperature (storage/transport): -25 °C ... 55 °C
- Ambient temperature (assembly): -5 °C ... 70 °C
- Ambient temperature (actuation): -5 °C ... 70 °C
- Connection method: Push-in connection
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 4 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 12
- Stripping length: 8 mm ... 10 mm
- Width: 5.2 mm
- Length: 111.8 mm
- Height NS 35/7,5: 55 mm
- Height NS 35/15: 62.5 mm
- Packing unit: 1 pc
- Minimum order quantity: 50 pc
- GTIN: 4055626004099
- Weight per Piece (excluding packing): 18.000 g
- Custom tariff number: 85369010
- Country of origin: Poland
- eCl@ss 10.0.1: 27141120
- eCl@ss 5.0: 27141100
- Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
