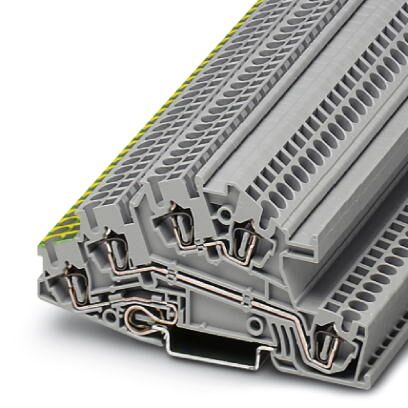

Phoenix Contact 3031830 grounding terminal block
Installation ground terminal block with spring-cage connection technology. Suitable for wire cross-sections from 0.08 mm² to 4 mm² (AWG 28 to 12). It features a width of 5.2 mm, is gray in color, and designed for mounting on NS 35/7.5 and NS 35/15 DIN rails. The product supports power ratings up to 24 A with a voltage withstand capacity of 1.89 kV. It complies with DIN EN 50155 standards for broadband noise and oscillation testing, ensuring mechanical stability and reliable connection performance for industrial grounding applications.
Phoenix Contact 3031830 grounding terminal block Specifications:
- Wire Cross-Section: 0.08 mm² to 4 mm² (AWG 28 to 12)
- Connection Method: Spring-cage connection
- Current Rating: 24 A
- Voltage Withstand: 1.89 kV
- Color: Gray
- Width: 5.2 mm
- Mounting: NS 35/7.5, NS 35/15 DIN rails
- Standards and Certifications: CSA, UL Recognized, cUL Recognized, VDE, IECEE CB Scheme, EAC
- Nominal Voltage: 300 V / 400 V depending on certification
- Test Standards: DIN EN 50155 broadband noise, oscillation
- Conductor Compatible: Stranded, TWIN ferrules with plastic sleeve, max. 0.5 mm²
- Padlock & Mechanical Stability: Passed connector stability test
- Material and Construction: Metal, with spring-cage for secure connection
Buy the Phoenix Contact 3031830 – Reliable Grounding Terminal Block for Industrial Applications
Purchase the Phoenix Contact grounding terminal block 3031830 online today and enjoy a robust, high-quality connection solution optimal for industrial grounding. Designed with spring-cage technology, it supports wire cross-sections from 0.08 mm² to 4 mm², providing a secure and corrosion-resistant connection. Suitable for DIN rail mounting on NS 35/7.5 and NS 35/15, this terminal block offers a current rating of 24 A and withstand voltage of 1.89 kV. Efficient, safe, and compliant with industry standards, it’s the ideal choice for your electrical installation needs.
Order your Phoenix Contact Series 3031830 grounding terminal block today and ensure your industrial grounding connections are secure, reliable, and easy to install.
Frequently Asked Questions
Where can I buy Phoenix Contact 3031830?
You can click on the BUY or RFQ button to purchase 3031830 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3031830?
You can download the 3031830 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3031830?
Phoenix Contact
