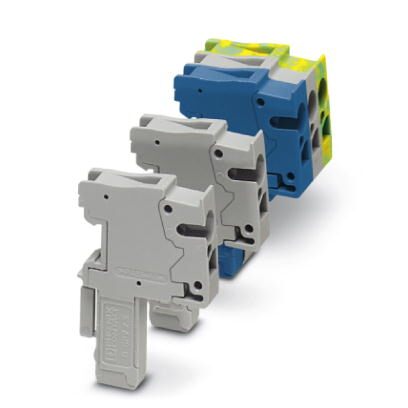

Phoenix Contact 3041105 Electrical Connector
This is a single-position connector with a spring-cage connection method. It accommodates wire cross sections ranging from 0.08 mm² to 4 mm² (AWG 28 to AWG 12). The connector supports a nominal current of 24 A and a nominal voltage of 500 V. It features a width of 5.2 mm and comes in a green-yellow color. Specifically designed for railway applications, this plug ensures reliable electrical connections with easy snapping assembly, making it ideal for self-assembled solutions and field installations requiring safety and durability.
Phoenix Contact 3041105 Electrical Connector Specifications:
- Nominal voltage: 500 V
- Nominal current: 24 A
- Connection method: Spring-cage connection
- Number of connections: 1
- Wire cross section: 0.08 mm² - 4 mm² (AWG 28-12)
- Width: 5.2 mm
- Height: 34 mm
- Color: Green-yellow
- Suitable for railway applications
- UL Recognized / cUL Recognized
- Fire protection standard: DIN EN 45545-2 R26
- Environmental compliance: China RoHS
- Conductor range: 26-12 AWG
Buy the Buy Phoenix Contact Connector Part Number 3041105 Online
Purchase the Phoenix Contact 3041105 connector online today to secure a high-quality, reliable electrical connection solution. Designed for ease of assembly, this connector features a spring-cage method suitable for wire cross sections ranging from 0.08 mm² to 4 mm² (AWG 28-12). It supports a nominal current of 24 A and a voltage of 500 V, making it ideal for railway and industrial applications. Its compact dimensions of 5.2 mm width and green-yellow color ensure it meets safety standards and is easy to identify during installations.
Order your Phoenix Contact 3041105 Connector today and ensure reliable, easy-to-assemble electrical connections with excellent durability.
Frequently Asked Questions
Where can I buy Phoenix Contact 3041105?
You can click on the BUY or RFQ button to purchase 3041105 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3041105?
You can download the 3041105 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3041105?
Phoenix Contact
