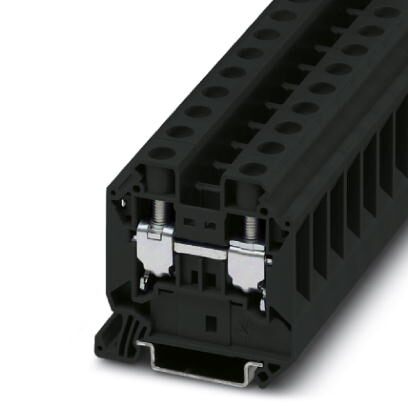

Phoenix Contact 3044197 Feed-Through Terminal Block
This feed-through terminal block features a nominal voltage of 1000 V and a current rating of 76 A. It connects via screw terminals and supports two connections with a wire cross-section range from 1.5 mm² to 25 mm² (AWG 16 to 4). The connector dimensions are 12.2 mm in width and 54.4 mm in height. It comes in black and is suitable for mounting on NS 35/7.5 or NS 35/15 panels, providing reliable and versatile connection options for industrial automation systems.
Phoenix Contact 3044197 Feed-Through Terminal Block Specifications:
- Maximum load current: 101 A (with 25 mm² conductor cross section)
- Nominal voltage: 1000 V
- Connection method: Screw connection
- Cross section support: 1.5 mm² - 25 mm² (AWG 16 - 4)
- Dimensions: Width 12.2 mm, Height 54.4 mm
- Color: Black
- Mounting: NS 35/7.5, NS 35/15
- Standards: IEC 60947-7-1
- Approvals: UL Recognized, VDE approved
- Weight per piece: 30.58 g
Buy the Buy Phoenix Contact Feed-Through Terminal Block Part Number 3044197 Online
Discover the convenience of ordering the Phoenix Contact feed-through terminal block online. Designed for robust industrial electrical connections, this terminal block features a 1000 V voltage rating, supports up to 101 A current, and accommodates wire sizes from 1.5 mm² to 25 mm². Its sleek black design and compatibility with NS 35 mounting rails make it ideal for versatile industrial installation. Trust this reliably tested component for safe, efficient, and durable electrical systems—order now for fast delivery and expert support.
Order your Phoenix Contact UT 16 BK terminal block today and ensure reliable, high-current connections in your automation projects.
Frequently Asked Questions
Where can I buy Phoenix Contact 3044197?
You can click on the BUY or RFQ button to purchase 3044197 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3044197?
You can download the 3044197 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3044197?
Phoenix Contact
