Phoenix Contact 3046236 Terminal Block with Diode
This component is a terminal block with an integrated diode, supporting a maximum current of 0.5 A and reverse voltage of 1300 V. It uses a 1N4007 diode rated for 800 V and 0.5 A. The screw connection allows for secure wiring, accommodating two conductors with cross sections from 0.14 mm² to 6 mm² (AWG 26 to 10). Measuring 6.2 mm in width, it mounts on NS 35/7.5 or NS 35/15 DIN rails, and features a gray color. Ideal for electronics and automation projects requiring reliable diode protection.
Phoenix Contact 3046236 Terminal Block with Diode Specifications:
- Flammability: UL 94V-0
- Contact Material: Copper alloy
- Temperature Rating: -40°C to +85°C
- Dimensions: Width 6.2 mm, suitable for DIN rail NS 35/7.5 and NS 35/15
- Material: Polyamide (nylon) housing
- Connection Method: Screw terminal
- Wire Range: 0.14 mm² to 6 mm² (AWG 26 to 10)
- Rated Current: 0.5 A
- Reverse Voltage: 1300 V
- Diode: 1N4007 rated for 800 V, 0.5 A

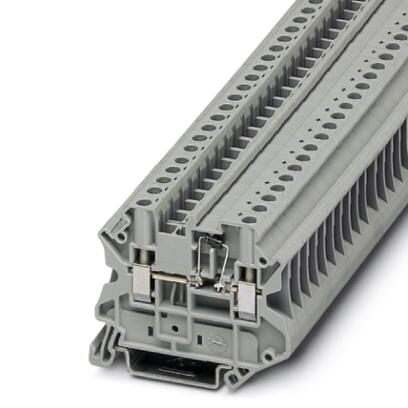

Buy the Phoenix Contact Series UT 4-MTD-DIO/R-L: 3046236
Discover the Phoenix Contact terminal block featuring an integrated diode, supporting up to 0.5 A current and 1300 V reverse voltage. Its screw connections ensure secure wiring, accommodating two conductors with cross sections from 0.14 mm² to 6 mm² (AWG 26-10). Sized at 6.2 mm wide, it mounts on NS 35/7.5 or NS 35/15 DIN rails, making it ideal for industrial automation, control systems, and electronic projects. Purchase online for reliable, durable performance.
Get Phoenix Contact 3046236 today—built for reliable diode protection and secure wiring in automation systems.
Frequently Asked Questions
Where can I buy Phoenix Contact 3046236?
You can click on the BUY or RFQ button to purchase 3046236 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3046236?
You can download the 3046236 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3046236?
Phoenix Contact
