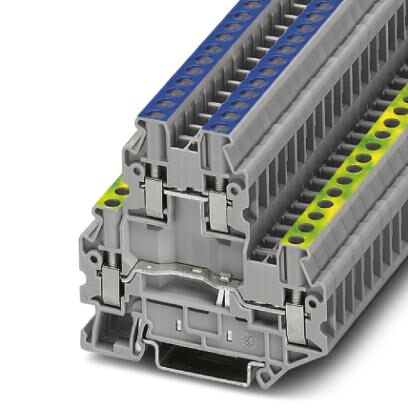

Phoenix Contact 3046731 Protective Conductor Terminal Block
The PHOENIX CONTACT UTTB 2,5-PE/N is a double-level terminal block specifically designed for protective conductor connections. Its dual-level design allows for efficient space utilization in control cabinets and distribution boards. The screw connection ensures reliable and secure termination of conductors ranging from 0.14 mm² to 4 mm² (26-12 AWG). This terminal block is ideal for applications requiring robust and reliable grounding connections in industrial automation, power distribution, and machinery control systems. It is compatible with NS 35/7.5 and NS 35/15 mounting rails, simplifying installation and integration into existing systems.
Phoenix Contact 3046731 Protective Conductor Terminal Block Specifications:
- Number of levels: 2
- Number of connections: 4
- Nominal cross section: 2.5 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Connection in acc. with standard: IEC 60947-7-1 / IEC 60947-7-2
- Nominal current IN: 24 A
- Maximum load current: 28 A (with 4 mm² conductor cross section)
- Nominal voltage UN: 500 V
- Open side panel: Yes
- Width: 5.2 mm
- Length: 69.9 mm
- Height NS 35/7,5: 65 mm
- Height NS 35/15: 72.5 mm
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 4 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 12
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 2.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 2.5 mm²
- 2 conductors with same cross section, solid min.: 0.14 mm²
- 2 conductors with same cross section, solid max.: 1.5 mm²
- 2 conductors with same cross section, stranded min.: 0.14 mm²
- 2 conductors with same cross section, stranded max.: 1.5 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve min.: 0.14 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve max.: 1.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve max.: 1.5 mm²
- Stripping length: 9 mm
- Internal cylindrical gage: A3
- Screw thread: M3
- Tightening torque, min: 0.5 Nm
- Tightening torque max: 0.6 Nm
- Packing unit: 1 pc
- Minimum order quantity: 50 pc
- Weight per Piece (excluding packing): 20.22 g
- Custom tariff number: 85369010
- Country of origin: Poland
- eCl@ss 4.0: 27141118
- eCl@ss 4.1: 27141118
- eCl@ss 5.0: 27141118
- eCl@ss 5.1: 27141118
- eCl@ss 6.0: 27141141
- eCl@ss 7.0: 27141141
- eCl@ss 8.0: 27141141
- eCl@ss 9.0: 27141141
- ETIM 2.0: EC000901
- ETIM 3.0: EC000901
- ETIM 4.0: EC000901
- ETIM 5.0: EC000901
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
