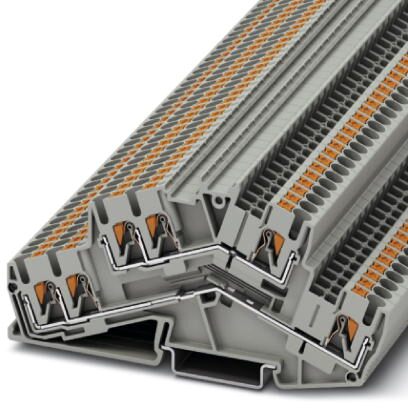

Phoenix Contact 3210600 Double Level Terminal Block
The PTTBS 2,5-TWIN double-level terminal block from PHOENIX CONTACT provides a robust and efficient connection solution for various industrial applications. Featuring a push-in connection, it simplifies wiring processes, eliminating the need for tools. The compact design allows for space-saving installations, while the front connection facilitates easy access and maintenance. This terminal block is ideal for rail vehicle applications, meeting stringent fire protection requirements (HL 1 - HL 3) and ensuring reliable performance in demanding environments. It is also characterized by its high nominal current (20 A) and voltage (800 V) capabilities, making it suitable for a wide range of power distribution and control systems.
Phoenix Contact 3210600 Double Level Terminal Block Specifications:
- Number of levels: 2
- Number of connections: 6
- Nominal cross section: 2.5 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 8 kV
- Overvoltage category: III
- Maximum power dissipation for nominal condition: 0.77 W
- Connection in acc. with standard: IEC 60947-7-1
- Nominal current IN: 20 A
- Maximum load current: 24 A
- Nominal voltage UN: 800 V
- Shock protection test specification: DIN EN 50274 (VDE 0660-514):2002-11
- Finger protection: guaranteed
- Result of surge voltage test: Test passed
- Result of power-frequency withstand voltage test: Test passed
- Result of bending test: Test passed
- Tensile test result: Test passed
- Result of tight fit on support: Test passed
- Result of voltage-drop test: Test passed
- Result of temperature-rise test: Test passed
- Short circuit stability result: Test passed
- Result of aging test: Test passed
- Result of thermal test: Test passed
- Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
- Width: 5.2 mm
- Length: 111.8 mm
- Pitch: 5.2 mm
- Height NS 35/7,5: 55 mm
- Height NS 35/15: 62.5 mm
- Connection method: Push-in connection
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 12
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
