Phoenix Contact 3211771 Multi-Conductor Terminal Block

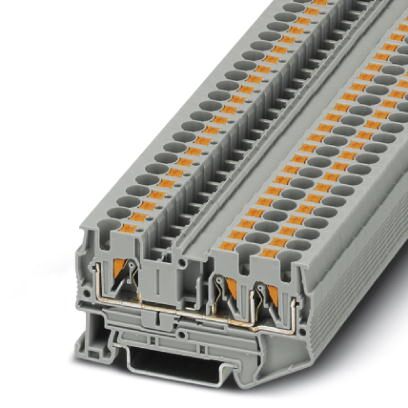

The Phoenix Contact PT 4-TWIN is a 30A rated multi-conductor terminal block designed for efficient wiring in industrial environments. It features a push-in connection method, accommodating wire sizes from 24 to 10 AWG, and supports a maximum voltage of 600V. This gray terminal block has a compact, single-level design suitable for confined spaces, with front connection for easy wiring. It is tested for railway applications and complies with multiple safety standards, making it reliable, versatile, and ideal for complex industrial systems requiring robust electrical connections.
Phoenix Contact 3211771 Multi-Conductor Terminal Block Specifications:
- Rated current: 30A
- Rated voltage: 600V
- Wire range: 24-10 AWG
- Connection method: Push-in connection
- Number of conductors: Multiple
- Material: Plastic housing, metal contact
- Color: Gray
- Dimensions: Suitable for NS 35/7.5, NS 35/15 mounting bases
- Conductor cross section: 0.2 mm² to 6 mm²
- Stripping length: 10 mm to 12 mm
- Standards: UL Recognized, cUL Recognized, CSA, VDE, IECEx, EAC, DNV GL, LR
- Fire protection: Compliant with DIN EN 45545-2 R23, R24, R26
- Tested for mechanical stability and railway applications
Buy the Phoenix Contact PT 4-TWIN U+2013 Reliable Terminal Block for Industrial Applications
Secure your electrical connections effortlessly with the Phoenix Contact PT 4-TWIN terminal block. Designed for up to 30A and 600V, it features push-in connection technology for quick and tool-free wiring of conductors from 24 to 10 AWG. Its compact, reliable design makes it ideal for confined spaces and complex systems in industrial and railway environments. Certified for safety and conforming to international standards, this terminal block guarantees durability and efficient performance, streamlining your wiring process and enhancing overall system reliability.
Order your Phoenix Contact PT 4-TWIN terminal block today and ensure secure, easy wiring for your industrial or railway projects with dependable quality.
Frequently Asked Questions
Where can I buy Phoenix Contact 3211771?
You can click on the BUY or RFQ button to purchase 3211771 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3211771?
You can download the 3211771 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3211771?
Phoenix Contact
