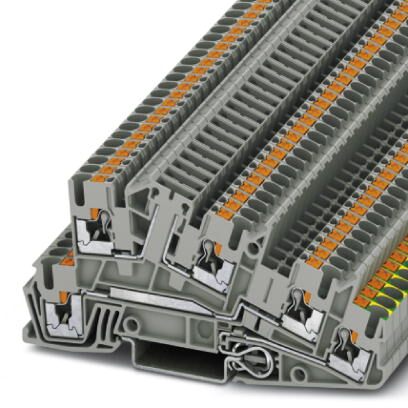

Phoenix Contact 3213960 Installation Ground Terminal Block
The PHOENIX CONTACT PTI 2,5-PE/L/TG installation ground terminal block is a versatile component for electrical systems requiring robust and safe grounding connections. Designed with a push-in connection mechanism, it simplifies installation and ensures reliable contact. The terminal block supports conductor cross sections ranging from 0.14 mm² to 4 mm², accommodating a wide range of wiring applications. Its compatibility with NS 35/7.5 and NS 35/15 mounting rails allows for flexible integration into various panel configurations. A key feature is the double function shafts, which meet the stringent safety requirements of DIN VDE 0100-718 by enabling individual circuit isolation. This terminal block is ideal for industrial applications where reliable grounding and circuit protection are paramount.
Phoenix Contact 3213960 Installation Ground Terminal Block Specifications:
- Number of levels: 3
- Number of connections: 5
- Potentials: 2
- Nominal cross section: 4 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 4 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation for nominal condition: 1.02 W
- Designation Level 1+2: Level 1+2
- Maximum load current: 30 A
- Nominal current IN: 24 A
- Nominal voltage UN (phase conductor/phase conductor): 400 V
- Nominal voltage UN (phase conductor/PE): 250 V
- Designation Level 3: Level 3
- Maximum load current (Level 3): 16 A
- Nominal current IN (Level 3): 16 A
- Nominal voltage UN (Level 3): 250 V
- Open side panel: Yes
- Packing unit: 1 pc
- Minimum order quantity: 50 pc
- GTIN: 4046356609579
- Weight per Piece (excluding packing): 19.200 g
- Custom tariff number: 85369010
- Country of origin: Germany
- Width: 5.2 mm
- End cover width: 2.2 mm
- Length: 101 mm
- Height NS 35/7,5: 50.5 mm
- Height NS 35/15: 58 mm
- Connection method: Push-in connection
- Stripping length: 8 mm ... 10 mm
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 12
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 4 mm²
