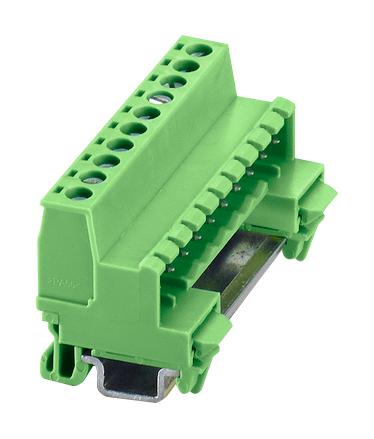

Phoenix Contact MSTBHK2510G508 Terminal Block Housing
This connector housing is designed for 10-position screw terminal blocks with a pitch of 5.08 mm, rated for 12 A and 320 V. Made from durable PA insulating material with a UL 94 V-0 flammability rating, it features a compact length of 52.3 mm and width of 23.14 mm, suitable for DIN rail mounting. The screw connection with tension sleeve ensures reliable contact, and the housing supports copper conductors with cross sections from 0.2 mm² to 2.5 mm². Ideal for industrial automation and wiring applications.
Phoenix Contact MSTBHK2510G508 Terminal Block Housing Specifications:
- Number of positions: 10
- Pitch: 5.08 mm
- Rated current: 12 A
- Rated voltage: 320 V
- Material: PA (polyamide), UL 94 V-0
- Length: 52.3 mm
- Width: 23.14 mm
- Connection method: Screw connection with tension sleeve
- Conductor cross section: 0.2 mm² to 2.5 mm²
- Mounting: DIN rail
- Flammability rating: UL 94 V-0
- Color: Green
- Rated surge voltage: 4 kV (II/2)
Buy the Phoenix Contact Series MSTBHK 2,5/10-G-5,08: MSTBHK2510G508
Enhance your electrical installations with our high-quality terminal block housing designed for 10 positions, rated at 12A, 320V with a 5.08mm pitch. Made from durable polyamide, it guarantees excellent insulation and flame resistance (UL 94 V-0). Its compact dimensions make it ideal for DIN rail mounting in industrial environments. The screw connection with tension sleeve provides secure, reliable contact on copper conductors from 0.2 mm² to 2.5 mm². Perfect for automation, control panels, and wiring applications.
Order your Phoenix Contact Series MSTBHK 2,5/10-G-5,08 today and ensure reliable and secure wiring for your industrial automation projects.
Frequently Asked Questions
Where can I buy Phoenix Contact MSTBHK2510G508?
You can click on the BUY or RFQ button to purchase MSTBHK2510G508 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part MSTBHK2510G508?
You can download the MSTBHK2510G508 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of MSTBHK2510G508?
Phoenix Contact
