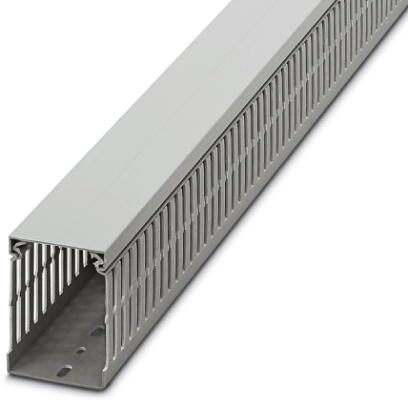

Phoenix Contact 3240354 Cable Duct CD-HF 60X80
The Phoenix Contact CD-HF 60X80 cable duct provides a reliable and efficient solution for cable management in industrial environments. Constructed from PC/ABS material and halogen-free, this cable duct ensures safety and compliance with industry standards. Its design incorporates predetermined breaking points, enabling tool-free and burr-free removal of bars, simplifying installation. The wide, diagonal heads of the cable duct bars facilitate easy cover placement and secure retention. Furthermore, the ability to create T and cross connections with an additional breaking point in the base enhances versatility. The secure cover retention, suitable for both horizontal and vertical mounting, combined with wire retaining clips, ensures that installed conductors remain firmly in place. This cable duct is a valuable asset for maintaining organized and protected cable systems in diverse industrial applications.
Phoenix Contact 3240354 Cable Duct CD-HF 60X80 Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 10 pc
- Custom tariff number: 39259020
- Country of origin: Germany
- Length (b): 2000 mm
- Width (a): 60 mm
- Height: 80 mm
- Ambient temperature (operation): -25 °C ... 90 °C
- Color: light gray
- Components: Halogen-free
- Flammability rating according to UL 94: V0
- Material: PC/ABS
- Halogen-free: yes
- Connection in acc. with standard: CSA
- eCl@ss 4.0: 27140602
- eCl@ss 4.1: 27140602
- eCl@ss 5.0: 27140602
- eCl@ss 5.1: 27140602
- eCl@ss 6.0: 27400703
- eCl@ss 7.0: 27400703
- eCl@ss 8.0: 27400703
- ETIM 2.0: EC000012
- ETIM 3.0: EC000012
- ETIM 4.0: EC000012
- ETIM 5.0: EC000012
- UNSPSC 6.01: 30101815
- UNSPSC 7.0901: 30101815
- UNSPSC 11: 30101815
- UNSPSC 12.01: 30101815
- UNSPSC 13.2: 30101815
- Approvals: CSA / UL Recognized / VDE Zeichengenehmigung
Buy the 3240354 PHOENIX CONTACT Cable Duct CD-HF 60X80 | myMectronic
Purchase the Phoenix Contact 3240354 Cable Duct CD-HF 60X80 securely online and ensure efficient cable management for your industrial applications.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact 3240354?
You can click on the BUY or RFQ button to purchase 3240354 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3240354?
You can download the 3240354 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3240354?
Phoenix Contact
