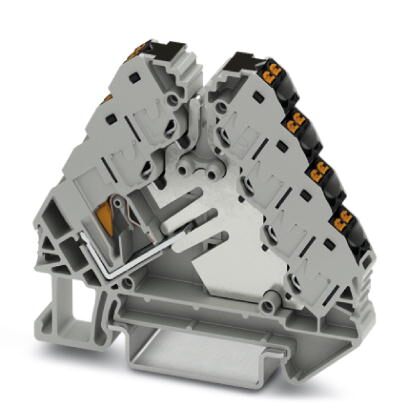

Phoenix Contact 3270158 Potential Distributor

Phoenix Contact 3270158 Potential Distributor Specifications:

• Number of positions: 2
• Number of levels: 4
• Number of connections: 13
• Potentials: 1
• Nominal cross section: 1.5 mm²
• Nominal cross section feed-in: 4 mm²
• Color: gray
• Color of connection elements: black
• Insulating material: PA
• Flammability rating according to UL 94: V0
• Rated surge voltage: 4 kV
• Overvoltage category: III
• Insulating material group: I
• Maximum power dissipation for nominal condition: 0.56 W
• Maximum load current: 24 A
• Maximum total current: 37 A
• Nominal current IN: 17.5 A
• Nominal voltage UN: 250 V
• Maximum load current (Service Entrance): 37 A
• Nominal current IN (Supply): 32 A
• Open side panel: Yes
• Shock protection test specification: DIN EN 50274 (VDE 0660-514):2002-11
• Finger protection: guaranteed
• Result of surge voltage test: Test passed
• Surge voltage test setpoint: 4.8 kV
• Result of power-frequency withstand voltage test: Test passed
• Power frequency withstand voltage setpoint: 1.5 kV
• Result of mechanical stability test: Test passed
• Result of bending test: Test passed
• Bending test rotation speed: 10 rpm
• Bending test turns: 135
• Bending test conductor cross section/weight (0.14 mm²): 0.2 kg
• Bending test conductor cross section/weight (1.5 mm²): 0.4 kg
• Bending test conductor cross section/weight (2.5 mm²): 0.7 kg
• Bending test conductor cross section/weight (0.2 mm²): 0.2 kg
• Bending test conductor cross section/weight (4 mm²): 0.9 kg
• Bending test conductor cross section/weight (6 mm²): 1.4 kg
• Tensile test result: Test passed
• Conductor cross section tensile test (0.14 mm²): 10 N
• Conductor cross section tensile test (1.5 mm²): 40 N
• Conductor cross section tensile test (2.5 mm²): 50 N
• Result of tight fit on support: Test passed
• Tight fit on carrier: NS 35
• Setpoint (Tight fit): 1 N
• Result of voltage-drop test: Test passed
• Voltage drop requirement: ≤ 3.2 mV
• Result of temperature-rise test: Test passed
• Short circuit stability result: Test passed
• Short-time current (1.5 mm²): 0.18 kA
• Short-time current (2.5 mm²): 0.3 kA
• Short-time current (4 mm²): 0.48 kA
• Short-time current (6 mm²): 0.72 kA
• Result of thermal test: Test passed
• Ageing test for screwless modular terminal block: 192 cycles
• Flame test duration: 30 s
• Oxygen index: >32 %
• NF F16-101, NF F10-102 Class I: 2
• NF F16-101, NF F10-102 Class F: 2
• NFPA 130 Surface flammability: passed
• NFPA 130 Optical density of smoke: passed
• NFPA 130 Smoke gas toxicity: passed
• NFPA 130 Calorimetric heat release: 27,5 MJ/kg
• Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
• Width: 8.3 mm
• Length: 64 mm
• Height NS 35/7,5: 55.5 mm
• Height NS 35/15: 63 mm
• Feed-in connection: Feed-in stage
• Connection method: Push-in connection
• Connection standard: IEC 60947-7-1
• Solid conductor min. cross section: 0.14 mm²
• Solid conductor max. cross section: 2.5 mm²
• AWG solid conductor min.: 26
• AWG solid conductor max.: 14
• Flexible conductor min. cross section: 0.14 mm²
• Flexible conductor max. cross section: 1.5 mm²
• Flexible AWG min.: 26
• Flexible AWG max.: 14
• Flexible conductor with ferrule min.: 0.14 mm²
• Flexible conductor with ferrule max.: 1.5 mm²
