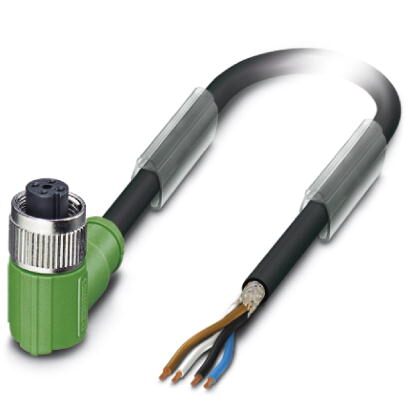

Phoenix Contact SAC4P50PURM12FRSH 4-Position PUR Cable
The PHOENIX CONTACT SAC-4P- 5 0-PUR/M12FR SH is a 4-position sensor/actuator cable designed for demanding industrial environments. It combines a flexible PUR jacket for durability, a tinned copper braided shield for electromagnetic interference protection, and an angled M12 connector for space-saving installations. This cable is ideal for connecting sensors and actuators in automated systems, ensuring reliable signal transmission and long-term performance. It is halogen-free and resistant to oils, acids, and alkalis, making it suitable for a wide range of applications.
Phoenix Contact SAC4P50PURM12FRSH 4-Position PUR Cable Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 251.1 g
- Custom tariff number: 85444290
- Country of origin: Poland
- Length of cable: 5 m
- Stripping length of the free conductor end: 50 mm
- Ambient temperature (operation): -25 °C ... 90 °C
- Degree of protection: IP65, IP67
- Rated current at 40°C: 4 A
- Rated voltage: 250 V
- Number of positions: 4
- Insulation resistance: ≥ 100 GΩ*km (at 20 °C)
- Coding: A - standard
- Standards/regulations: M12 connector IEC 61076-2-101
- Overvoltage category: II
- Degree of pollution: 3
- Insertion/withdrawal cycles: ≥ 100
- Torque: 0.4 Nm (M12 connector)
- Flammability rating according to UL 94: HB
- Contact material: CuSn
- Contact surface material: Ni/Au
- Contact carrier material: TPU GF
- Material of grip body: TPU, hardly inflammable, self-extinguishing
- Material, knurls: Zinc die-cast, nickel-plated
- Sealing material: NBR
- Cable type: PUR halogen-free black
- Cable type (abbreviation): PUR
- Cable abbreviation: Li9Y-V1-C-V1-11Y
- UL AWM style: 20549 / 10493 (80°C/300 V)
- Conductor cross section: 4x 0.34 mm² (Signal line)
- AWG signal line: 22
- Conductor structure signal line: 42x 0.10 mm
- Core diameter including insulation: 1.27 mm ±0.02 mm (Signal line)
- Thickness, insulation: ≥ 0.21 mm
- Wire colors: brown, white, blue, black
- Overall twist: 4 wires, twisted
- Shielding: Tinned copper braided shield
- Optical shield covering: 85 %
- External sheath, color: black-gray RAL 7021
- Outer sheath thickness: approx. 1 mm
- External cable diameter D: 5.9 mm ±0.2 mm
- Smallest bending radius, fixed installation: 29.5 mm
- Smallest bending radius, movable installation: 59 mm
- Minimum bending radius, fixed installation: 5 x D
- Minimum bending radius, flexible installation: 10 x D
- Number of bending cycles: 2000000
- Bending radius: 59 mm
- Minimum bending radius, drag chain applications: 10 x D
- Traversing path: 10 m
- Traversing rate: 3 m/s
- Acceleration: 10 m/s²
- Cable weight: 46 kg/km
- Outer sheath, material: PUR
- Material conductor insulation: PP
- Conductor material: Bare Cu litz wires
- Conductor resistance: max. 58 Ω/km (at 20 °C)
- Working capacitance: ≤ 80 pF (Conductor-Conductor), ≤ 135 pF (Wire/shield)
- Wave impedance: ≥ 62 Ω (f = 10 MHz)
- Inductance: approx. 0.75 mH (f = 1 kHz)
- Nominal voltage, cable: ≤ 300 V
- Test voltage, cable: ≥ 3000 V
