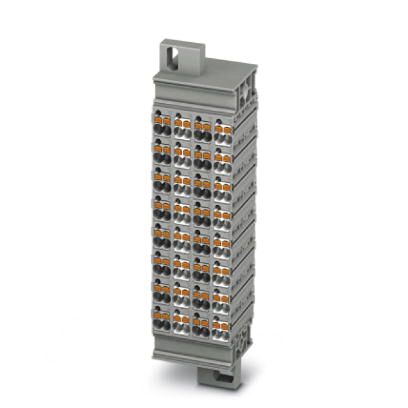

Phoenix Contact 3270316 Marshalling Patchboard
The Phoenix Contact PTMC 1,5/32-2H 19Z marshalling patchboard provides a versatile solution for connecting and routing wires in industrial environments. Designed for mounting in 19" racks, this patchboard features a compact design and utilizes push-in technology for high contact quality and simplified wiring. Its vertical conductor routing ensures clear representation of actuation and terminal points, while the tool-free wiring capability streamlines installation in confined spaces. The patchboard supports a wide range of conductor sizes and offers robust electrical and fire protection characteristics, making it suitable for various industrial applications including rail vehicles and equipment requiring high reliability.
Phoenix Contact 3270316 Marshalling Patchboard Specifications:
- Nominal voltage: 500 V
- Nominal current: 17.5 A
- Conductor cross section solid min: 0.14 mm²
- Conductor cross section solid max: 2.5 mm²
- Conductor cross section AWG min: 26
- Conductor cross section AWG max: 12
- Connection type: Push-in connection
- Number of positions: 32
- Number of connections: 128
- Width: 34.4 mm
- Length: 111 mm
- Color: gray
- Flammability rating according to UL 94: V0
- Rated surge voltage: 4 kV
- Oxygen index (DIN EN ISO 4589-2): >32 %
- Fire protection for rail vehicles (DIN EN 45545-2): HL 1 - HL 3
- Maximum load current (with 2.5 mm² conductor, extensive wiring): 22 A
- Maximum load current (with 2.5 mm² conductor, confined space): 12 A
- Stripping length: 8 mm ... 10 mm
