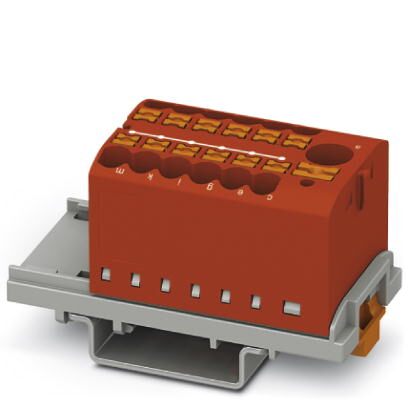

Phoenix Contact 3273092 Distribution Terminal Block

Phoenix Contact 3273092 Distribution Terminal Block Specifications:

• Packing unit: 1 STK
• Minimum order quantity: 8 STK
• GTIN: 4055626391038
• Weight per Piece (excluding packing): 35.000 g
• Custom tariff number: 85369010
• Country of origin: Poland
• Number of levels: 1
• Number of connections: 13
• Potentials: 1
• Nominal cross section: 2.5 mm²
• Nominal cross section feed-in: 6 mm²
• Color: red
• Insulating material: PA
• Flammability rating according to UL 94: V0
• Rated surge voltage: 6 kV
• Degree of pollution: 3
• Overvoltage category: III
• Insulating material group: I
• Maximum power dissipation for nominal condition: 1.31 W
• Maximum load current: 24 A
• Nominal current IN: 24 A
• Nominal voltage UN: 500 V
• Maximum load current (10 mm² conductor): 57 A
• Nominal current IN (6 mm² conductor): 41 A
• Open side panel: No
• Shock protection test specification: DIN EN 50274
• Finger protection: guaranteed
• Result of surge voltage test: Test passed
• Surge voltage test setpoint: 9.8 kV
• Result of power-frequency withstand voltage test: Test passed
• Power frequency withstand voltage setpoint: 1.89 kV
• Result of mechanical stability test: Test passed
• Result of bending test: Test passed
• Bending test rotation speed: 10 rpm
• Bending test turns: 135
• Bending test conductor cross section/weight (0.5 mm²): 0.3 kg
• Bending test conductor cross section/weight (6 mm²): 1.4 kg
• Bending test conductor cross section/weight (10 mm²): 2 kg
• Bending test conductor cross section/weight (0.14 mm²): 0.2 kg
• Bending test conductor cross section/weight (2.5 mm²): 0.7 kg
• Bending test conductor cross section/weight (4 mm²): 0.9 kg
• Tensile test result: Test passed
• Conductor cross section tensile test (0.5 mm²): 20 N
• Conductor cross section tensile test (6 mm²): 80 N
• Conductor cross section tensile test (10 mm²): 90 N
• Result of tight fit on support: Test passed
• Tight fit on carrier: NS 35
• Setpoint (tight fit): 5 N
• Result of voltage-drop test: Test passed
• Voltage drop: ≤ 1.6 mV
• Result of temperature-rise test: Test passed
• Short circuit stability result: Test passed
• Short-time current (6 mm²): 0.72 kA
• Short-time current (10 mm²): 1.2 kA
• Result of thermal test: Test passed
• Ageing test cycles: 192
• Flame duration: 30 s
• Result of aging test: Test passed
• Oscillation test result: Test passed
• Acceleration (ASD level): 6.12 m/s²
• Acceleration (g): 3.12 g
• Shock test result: Test passed
• Relative insulation material temperature index: 130 °C
• Temperature index of insulation material: 130 °C
• Fire protection for rail vehicles: HL 1 - HL 3
• Width: 28.6 mm
• Length: 58.1 mm
• Height: 28.7 mm
• Height NS 35/7,5: 32.1 mm
• Height NS 35/15: 39.6 mm
• Feed-in connection: Feed-in stage
• Connection method: Push-in connection
• Connection standard: IEC 60947-7-1
• Solid conductor min: 0.14 mm²
• Solid conductor max: 4 mm²
• AWG min: 26
• AWG max: 12
• Flexible conductor min: 0.14 mm²
• Flexible conductor max: 2.5 mm²
• Flexible AWG min: 26
• Flexible AWG max: 14
• Ferrule conductor min: 0.14 mm²
• Ferrule conductor max: 2.5 mm²
• Stripping length: 8 mm ... 10 mm
