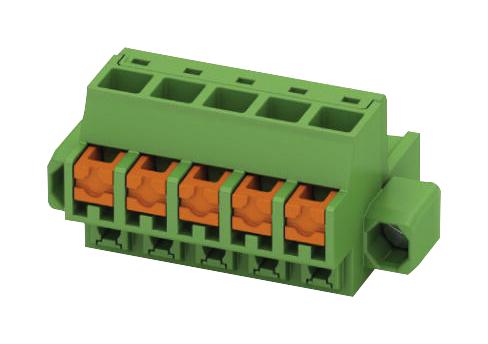

Phoenix Contact FKCOR255STF508 PCB connector
The FKCOR 2.5/5-STF-5.08 from Phoenix Contact is a 5.08 mm pitch, five-pole female PCB connector featuring a screw flange for enhanced mechanical stability. It allows for orthogonal conductor connection, simplifying cabling in DIN-rail-mounted devices. The connector supports quick, tool-free push-in wire connection with an intuitive, color-coded actuation lever, and uses tin-plated spring contacts. It is rated for a surge voltage of 4 kV and a rated operational voltage of 250 V (III/3), 320 V (III/2), and 630 V (II/2). It can handle a nominal current of 12 A with a conductor cross-section range from 0.2 mm² to 2.5 mm² (24 AWG to 12 AWG). The connection has a stripping length of 10 mm and is suitable for industrial applications, providing efficient and reliable wiring for DIN-rail-mounted devices.
Phoenix Contact FKCOR255STF508 PCB connector Specifications:
- Number of Positions: 5
- Pitch: 5.08 mm
- Rated Voltage: 250 V (III/3), 320 V (III/2), 630 V (II/2)
- Rated Surge Voltage: 4 kV
- Nominal Current: 12 A
- Connection Method: Push-in spring connection
- Conductor Cross-section: 0.2 mm² to 2.5 mm² (AWG 24 to 12)
- Stripping Length: 10 mm
- Dimensions: Length 23.7 mm, Width 35.38 mm, Height 14.3 mm
- Color: Green
- Contact Surface: Tin-plated
- Mounting: Screw flange for mechanical stability
Buy the Phoenix Contact Series FKCOR 2.5/5-STF-5.08: FKCOR255STF508
Enhance your industrial wiring with the Phoenix Contact FKCOR 2.5/5-STF-5.08 PCB connector. Featuring a 5.08 mm pitch, five positions, and push-in spring connection, this connector simplifies cabling for DIN-rail-mounted devices. Its screw flange offers added mechanical stability, while the tin-plated contacts ensure long-term reliability. Rated for up to 12 A and various voltages, it supports conductor cross-sections from 0.2 mm² to 2.5 mm². Easy to install with a 10 mm stripping length, it’s perfect for efficient, maintenance-friendly electrical connections.
Order your Phoenix Contact Series FKCOR 2.5/5-STF-5.08 connector today and ensure reliable, tool-free wiring in your industrial control systems.
Frequently Asked Questions
Where can I buy Phoenix Contact FKCOR255STF508?
You can click on the BUY or RFQ button to purchase FKCOR255STF508 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part FKCOR255STF508?
You can download the FKCOR255STF508 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of FKCOR255STF508?
Phoenix Contact
