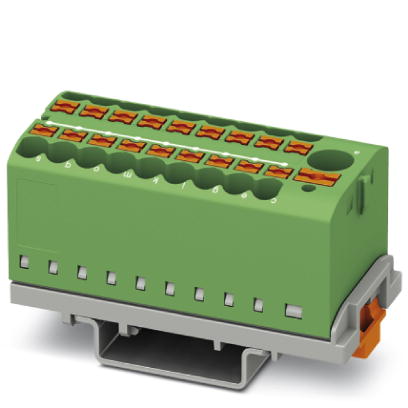

Phoenix Contact 3273118 Distribution Block
The distribution block offers a robust solution for electrical wiring in industrial and automation settings. Featuring a green color, it supports a maximum voltage of 500 V and a nominal current of 24 A. It enables tool-free push-in connection technology for fast, easy wiring, with 19 connection points accommodating conductor sizes from 0.14 mm² to 4 mm² or AWG 26 to 12. Its compact design, mounting options, and space-saving transverse mounting make it ideal for DIN rail applications, ensuring reliable, flexible, and efficient circuit wiring in control panels and distribution systems.
Phoenix Contact 3273118 Distribution Block Specifications:
- Max Voltage: 500 V
- Nominal Current: 24 A
- Number of connections: 19
- Connection method: Push-in
- Conductor range: 0.14 mm² - 4 mm²
- AWG: 26 - 12
- Dimensions: Width 28.6 mm, Height 28.7 mm
- Color: Green
- Mounting: DIN rail NS 35/7.5, NS 35/15, or adhesive
- Material: Steel with galvanized, passivated finish
- Compliance: UL Recognized, VDE approved, CSA approved
- Supported fire protection standards for rail vehicles: DIN EN 45545-2 R26
Buy the PhoenixContact Series Distribution Block: 3273118
Purchase the PhoenixContact Distribution Block capable of supporting 19 connections, featuring push-in technology for quick, tool-free wiring. Its compact, space-efficient design allows for transverse mounting on DIN rails, ideal for industrial control panels. Constructed with durable galvanized steel and compliant with fire safety standards, it ensures reliable electrical distribution. The green color facilitates wiring clarity and organization, making it suitable for automation systems and complex wiring arrangements. Order now online for fast delivery and seamless integration into your system.
Order your PhoenixContact SeriesDistribution Block 3273118 today and enhance your electrical wiring with reliable, flexible, and space-saving design.
Frequently Asked Questions
Where can I buy Phoenix Contact 3273118?
You can click on the BUY or RFQ button to purchase 3273118 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3273118?
You can download the 3273118 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3273118?
Phoenix Contact
