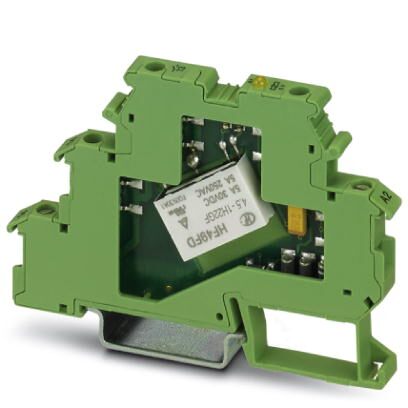

Phoenix Contact DEKREL5I1 5V Relay Module
The PHOENIX CONTACT DEK-REL- 5/I/1 relay module provides a compact and efficient solution for various industrial applications. Its design minimizes space requirements and reduces costs by eliminating the need for a separate terminal block. The module's 2-layer contact with hard gold plating ensures reliable performance for a wide range of loads, from 1 mA to 5 A. With integrated input circuitry and 2 kVrms electrical isolation, this module offers enhanced safety and functionality. It is ideal for applications requiring a small footprint and reliable relay performance.
Phoenix Contact DEKREL5I1 5V Relay Module Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 26.64 g
- Custom tariff number: 85364190
- Country of origin: China
- Nominal input voltage UN: 5 V AC/DC
- Input voltage range in reference to UN: 0.9 ... 1.1
- Typical input current at UN: 23 mA
- Typical response time: 8 ms
- Typical release time: 15 ms
- Protective circuit: Bridge rectifier
- Operating voltage display: Yellow LED
- Power dissipation for nominal condition: 0.12 W
- Contact type: 1 N/O contact (double contact)
- Contact material: AgNi, hard gold-plated
- Maximum switching voltage AC: 250 V AC
- Maximum switching voltage DC: 125 V DC
- Minimum switching voltage: 0.1 V
- Min. switching current: 1 mA
- Maximum inrush current: 5 A
- Limiting continuous current: 3 A (5 A up to 35°C at 24 V DC)
- Interrupting rating (ohmic load) max.: 72 W (at 24 V DC)
- Interrupting rating (ohmic load) max. 2: 60 W (at 48 V DC)
- Interrupting rating (ohmic load) max. 3: 50 W (at 60 V DC)
- Interrupting rating (ohmic load) max. 4: 50 W (at 110 V DC)
- Interrupting rating (ohmic load) max. 5: 750 VA (for 250 V AC)
- Interrupting rating (ohmic load) max. 6: 120 W (at 24 V DC - up to 35°)
- Test voltage relay winding/relay contact: 2 kV AC (50 Hz, 1 min.)
- Operating mode: 100% operating factor
- Mechanical service life: Approx. 2 x 10^7 cycles
- Standards/regulations: IEC 60664
- EN: EN 50178
- IEC: IEC 62103
- Rated surge voltage/insulation: Basic insulation
- Degree of pollution: 2
- Overvoltage category: III
- Mounting position: any
- Assembly instructions: In rows with zero spacing
- Connection name input side: Coil side
- Connection method input side: Screw connection
- Stripping length input side: 8 mm
- Screw thread input side: M3
- Conductor cross section solid input side: 0.2 mm² ... 2.5 mm²
- Conductor cross section flexible input side: 0.2 mm² ... 2.5 mm²
- Conductor cross section AWG input side: 24 ... 14
- Connection name output side: Contact side
- Connection method output side: Screw connection
- Stripping length output side: 8 mm
- Screw thread output side: M3
- Conductor cross section solid output side: 0.2 mm² ... 2.5 mm²
- Conductor cross section flexible output side: 0.2 mm² ... 2.5 mm²
- Conductor cross section AWG output side: 24 ... 14
- eCl@ss 4.0: 27371102
- eCl@ss 4.1: 27371102
- eCl@ss 5.0: 27371001
- eCl@ss 5.1: 27371001
- eCl@ss 6.0: 27371001
- eCl@ss 7.0: 27371601
- eCl@ss 8.0: 27371601
- eCl@ss 9.0: 27371601
- ETIM 2.0: EC001437
- ETIM 3.0: EC001437
- ETIM 4.0: EC001437
- ETIM 5.0: EC001437
- UNSPSC 6.01: 30211916
- UNSPSC 7.0901: 39121515
- UNSPSC 11: 39121515
- UNSPSC 12.01: 39121515
- UNSPSC 13.2: 39121515
