Phoenix Contact ABSS Insulation Support Bracket

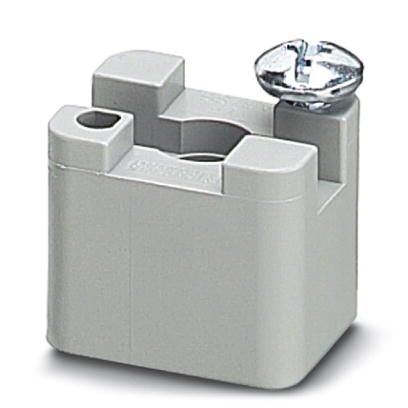

The PHOENIX CONTACT AB/SS support bracket is a crucial component in industrial electrical systems, specifically designed to provide secure and insulated support for busbars. Manufactured from high-quality PA (Polyamide) material, this bracket is free from silicone and halogen, ensuring compatibility with various applications and minimizing environmental impact. Its robust design incorporates a retaining screw for reliable attachment and can accommodate both 3 x 10 mm and 6 x 6 mm busbar sizes. The V0 flammability rating, as per UL 94, enhances safety by preventing the rapid spread of fire. This bracket finds application in control cabinets, power distribution panels, and other industrial settings where reliable busbar support is essential.
Phoenix Contact ABSS Insulation Support Bracket Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 10 pc
- Weight per Piece (excluding packing): 6.81 g
- Custom tariff number: 85472000
- Country of origin: Poland
- Length (b): 23.4 mm
- Width (a): 19.4 mm
- Height: 21.7 mm
- Color: gray
- Components: free from silicone and halogen
- Flammability rating according to UL 94: V0
- Material: PA
- eCl@ss 4.0: 23150301
- eCl@ss 4.1: 23150301
- eCl@ss 5.0: 27141143
- eCl@ss 5.1: 27141143
- eCl@ss 6.0: 27400607
- eCl@ss 7.0: 27400607
- eCl@ss 8.0: 27400607
- ETIM 2.0: EC000761
- ETIM 3.0: EC000761
- ETIM 4.0: EC002270
- ETIM 5.0: EC001166
- UNSPSC 6.01: 30212109
- UNSPSC 7.0901: 39121708
- UNSPSC 11: 39121708
- UNSPSC 12.01: 39121708
- UNSPSC 13.2: 39121708
Buy the AB/SS PHOENIX CONTACT Insulation Support Bracket | myMectronic
Purchase the PHOENIX CONTACT AB/SS support bracket securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact ABSS?
You can click on the BUY or RFQ button to purchase ABSS from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part ABSS?
You can download the ABSS datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of ABSS?
Phoenix Contact
