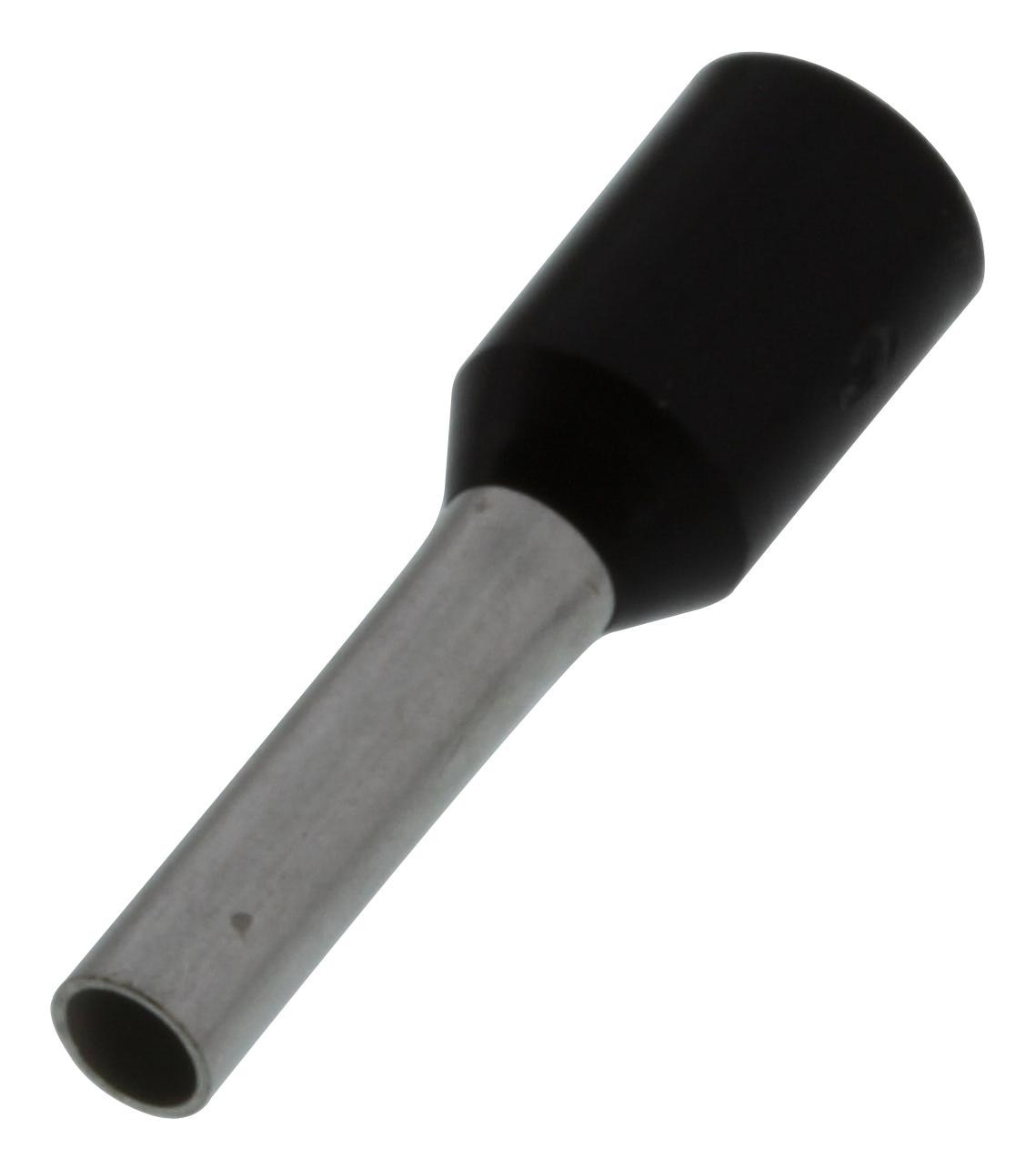

Phoenix Contact AI158BK Ferrule Sleeve
The PHOENIX CONTACT AI 1,5 - 8 BK ferrule is a crucial component for ensuring secure and reliable electrical connections. Constructed from soft, tin-plated electrolytic copper, these ferrules provide excellent conductivity and corrosion resistance. The plastic sleeve enhances insulation and prevents wire splicing, contributing to the overall safety and longevity of electrical systems. Suitable for a wide range of applications, including stranded conductors, these ferrules are designed to withstand both short-term and long-term temperature exposure, making them ideal for demanding industrial environments. They are compliant with CSA and DIN standards, ensuring quality and performance.
Phoenix Contact AI158BK Ferrule Sleeve Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 100 pc
- GTIN: 4017918093693
- Weight per Piece (excluding packing): 0.120 g
- Custom tariff number: 85369010
- Country of origin: Germany
- Length (b): 14 mm
- Maximum stripping length: 11 mm
- Sleeve length: 8 mm
- Inner dimension of the insulating collar (d): 3.4 mm
- Ferrule diameter: 1.8 mm
- Insulating collar thickness: 0.3 mm
- Sleeve wall thickness: 0.15 mm
- Short-term temperature: 120 °C
- Max. permanent temperature: 105 °C
- Color: black
- Components: free from silicone and halogen
- Flammability rating according to UL 94: HB
- Material: CU-DHP
- Coating: tin-plated (galvanic)
- Conductor category: Stranded conductors, class 2, 5, 6 / B, C, K, M
- Connection in acc. with standard: CSA
- Design according to standard: DIN 46228-4:2017-05
- China RoHS: Environmentally friendly use period: unlimited
- eCl@ss 4.0: 27060700
- eCl@ss 4.1: 27060700
- eCl@ss 5.0: 27400200
- eCl@ss 5.1: 27400200
- eCl@ss 6.0: 27400200
- eCl@ss 7.0: 27400201
- eCl@ss 8.0: 27400201
- eCl@ss 9.0: 27400201
- ETIM 2.0: EC000005
- ETIM 3.0: EC000005
- ETIM 4.0: EC000005
- ETIM 5.0: EC000005
- ETIM 6.0: EC000005
- ETIM 7.0: EC000005
- UNSPSC 6.01: 30212109
- UNSPSC 7.0901: 27121703
- UNSPSC 11: 27121703
- UNSPSC 12.01: 27121703
- UNSPSC 13.2: 27121703
Buy the AI 1 5 - 8 BK PHOENIX CONTACT Ferrule Sleeve | myMectronic
Purchase the PHOENIX CONTACT AI 1,5 - 8 BK ferrule securely online for reliable electrical connections.
