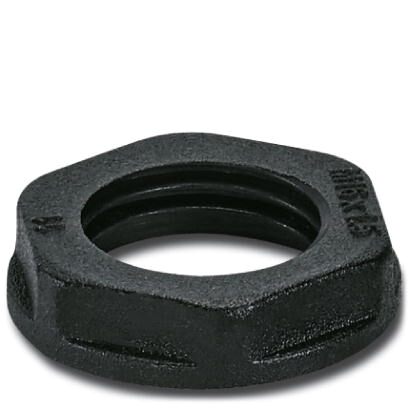

Phoenix Contact AINLM20PBK Counter Nut M20
The PHOENIX CONTACT A-INL-M20-P-BK counter nut is a crucial component for securing threaded connections, particularly those utilizing M20 x 1.5 threads. Constructed from durable PA (Polyamide) material, it offers excellent chemical resistance and mechanical strength. Its jet black RAL 9005 finish provides a consistent and professional appearance. This counter nut is ideal for applications in electrical enclosures, control cabinets, and other industrial settings where robust and reliable threaded connections are essential. It is RoHS compliant, ensuring environmentally responsible use. The nut's dimensions, including a 26mm wrench size, facilitate easy and efficient installation and maintenance.
Phoenix Contact AINLM20PBK Counter Nut M20 Specifications:
- Packing unit: 1 pc
- GTIN: 4046356923477
- Weight per Piece: 4.000 g
- Custom tariff number: 39269097
- Country of origin: Turkey
- Length: 6 mm
- Connecting thread diameter: 20 mm
- Wrench size: 26 mm
- Hexagon angular dimension: 28.6 mm
- Ambient temperature (operation): -40 °C ... 100 °C
- Material: PA
- Flammability rating: V2
- Thread type on connection side: M20 x 1.5
- Color: jet black RAL 9005
- Halogen-free: yes
- China RoHS: Environmentally friendly use period: unlimited
- Substance compliance: No hazardous substances above threshold values
- eCl@ss 10.0.1: 27144424
- eCl@ss 4.0: 27141200
- eCl@ss 4.1: 27141200
- eCl@ss 5.0: 27149100
- eCl@ss 5.1: 27149100
- eCl@ss 6.0: 27149100
- eCl@ss 7.0: 27069219
- eCl@ss 8.0: 27069219
- eCl@ss 9.0: 27144424
- ETIM 4.0: EC000032
- ETIM 5.0: EC000129
- ETIM 6.0: EC000940
- ETIM 7.0: EC000940
- UNSPSC 13.2: 31161716
- UNSPSC 18.0: 31161716
- UNSPSC 19.0: 31161716
- UNSPSC 20.0: 31161716
- UNSPSC 21.0: 31161716
