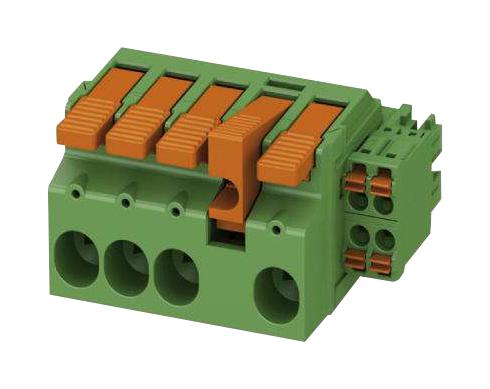

Phoenix Contact LPCH636STL3762 PCB Hybrid Connector
The PCB hybrid connector LPCH 6/ 3+6-STL3-7.62 is a versatile female connector designed for reliable power and signal transmission in electronic assemblies. It features a 7.62 mm pitch and push-in spring connection for quick, secure wiring. With a rated current of 41 A and voltage of 1000 V, it suits industrial applications. Constructed with tin-plated Cu alloy contacts and insulated with PAGF material, it withstands harsh environments and meets safety standards. Ideal for PCB mounting, it offers robust mechanical and electrical performance, ensuring long-term stability in various operational conditions.
Phoenix Contact LPCH636STL3762 PCB Hybrid Connector Specifications:
- Pitch: 7.62 mm
- Number of positions: 9
- Connection method: Push-in spring connection
- Rated current: 41 A
- Rated voltage: 1000 V
- Surge voltage: 8 kV
- Conductor cross section solid: 0.75 mm² ... 10 mm²
- Conductor cross section flexible: 0.75 mm² ... 6 mm²
- Conductor cross section AWG: 18 ... 8
- Material: Tin-plated Cu alloy
- Housing material: PAGF
- Flammability rating: UL 94 V-0
- Dimensions: 48 mm length, 44.11 mm width, 35.65 mm height
- Terminal diameter: 4.0 mm
- Stripping length: 18 mm
- Insulation material: PAGF
- Ambient temperature (operation): -40°C to 100°C
- Protection class: IP20
- Compliance: RoHS, IEC 60068-2-82
- Approvals: cULus Recognized
Buy the Buy Phoenix Contact PCB hybrid connector Part Number LPCH636STL3762 Online
Purchase the Phoenix Contact PCB hybrid connector LPCH 6/ 3+6-STL3-7.62 online to ensure reliable, durable power and signal connections for your electronic projects. This high-quality connector features a 7.62 mm pitch, rated for 41 A and 1000 V, suitable for various industrial and commercial applications. Its push-in spring connection simplifies wiring. Made with tin-plated Cu alloy contacts and insulating PAGF material, it provides long-term stability, resistance to environmental stress, and compliance with safety standards. Buy now for efficient and secure PCB assembly.
Get Phoenix Contact LPCH 6/ 3+6-STL3-7.62 today—built for reliable power transmission and rapid PCB installation.
Frequently Asked Questions
Where can I buy Phoenix Contact LPCH636STL3762?
You can click on the BUY or RFQ button to purchase LPCH636STL3762 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part LPCH636STL3762?
You can download the LPCH636STL3762 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of LPCH636STL3762?
Phoenix Contact
