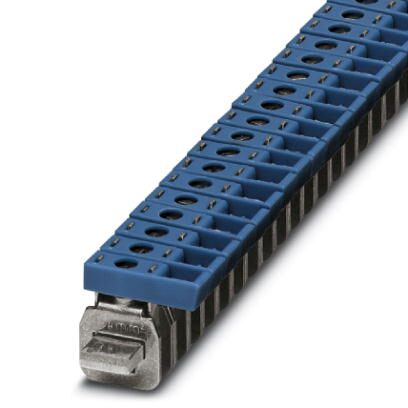

Phoenix Contact AKG4BU Connection Terminal Block
The PHOENIX CONTACT AKG 4 BU connection terminal block is a versatile solution for establishing secure and reliable electrical connections. Designed with a screw connection mechanism, it accommodates conductors ranging from 0.5 mm² to 6 mm², ensuring compatibility with a wide range of wiring scenarios. The terminal block's robust PA insulating material and blue color contribute to its durability and ease of identification in complex systems. It is commonly used in control cabinets, power distribution systems, and machinery for connecting and distributing electrical power. Its compliance with UL Recognized and EAC standards ensures quality and safety in diverse industrial environments.
Phoenix Contact AKG4BU Connection Terminal Block Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 50 pc
- Weight per Piece (excluding packing): 5.57 g
- Custom tariff number: 85369010
- Country of origin: Germany
- Color: blue
- Insulating material: PA
- Nominal cross section: 4 mm²
- Flammability rating according to UL 94: V2
- Nominal current IN: 41 A
- Maximum load current: 41 A (with 6 mm² conductor cross section)
- Nominal voltage UN: 300 V
- Mechanical stability: Test passed
- Bending test: Test passed
- Bending test rotation speed: 10 rpm
- Bending test turns: 135
- Tensile test: Test passed
- Conductor cross section tensile test (0.5 mm²): 30 N
- Conductor cross section tensile test (4 mm²): 60 N
- Conductor cross section tensile test (6 mm²): 80 N
- Voltage-drop test: Test passed
- Voltage drop: ≤ 3.2 mV
- Temperature-rise test: Test passed
- Short circuit stability: Test passed
- Short-time current: 0.48 kA
- Relative insulation material temperature index (UL 746 B): 125 °C
- Temperature index of insulation material (DIN EN 60216-1): 125 °C
- Length: 23.7 mm
- Width: 7 mm
- Solid conductor min.: 0.5 mm²
- Solid conductor max.: 6 mm²
- Stranded conductor min.: 0.5 mm²
- Stranded conductor max.: 4 mm²
- AWG min.: 20
- AWG max.: 10
- Flexible conductor with ferrule min.: 0.5 mm²
- Flexible conductor with ferrule max.: 6 mm²
- 2 conductors solid min.: 0.5 mm²
- 2 conductors solid max.: 2.5 mm²
- 2 conductors stranded min.: 0.5 mm²
- 2 conductors stranded max.: 2.5 mm²
- Screw thread: M4
- Tightening torque min.: 1.5 Nm
- Tightening torque max.: 1.8 Nm
- Connection in acc. with standard: CUL
- eCl@ss 4.0: 27141131
- eCl@ss 4.1: 27141131
- eCl@ss 5.0: 27141131
- eCl@ss 5.1: 27141131
- eCl@ss 6.0: 27141120
- eCl@ss 7.0: 27141120
- eCl@ss 8.0: 27141146
- eCl@ss 9.0: 27141120
- ETIM 2.0: EC000897
- ETIM 3.0: EC000897
- ETIM 4.0: EC000897
- ETIM 5.0: EC000001
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
