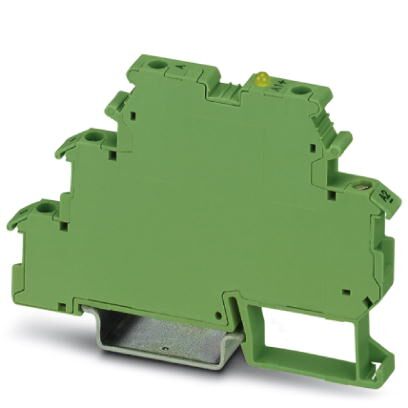

Phoenix Contact DEKOE24DC24DC100KHZ Solid-State Relay Terminal Block
The PHOENIX CONTACT DEK-OE- 24DC/ 24DC/100KHZ solid-state relay terminal block is a versatile component for industrial automation and control systems. It offers a 24V DC input voltage range and a push-pull output stage capable of delivering 14-30V DC at 50mA. The device's transmission frequency reaches up to 100 kHz, making it suitable for high-speed applications. It incorporates a protective circuit, including polarity protection, and signal inputs compatible with PLC counter boards. The integrated capacitor on the input side provides interference suppression, ensuring reliable operation in electrically noisy environments. This terminal block is designed for robust performance and ease of integration into various industrial setups.
Phoenix Contact DEKOE24DC24DC100KHZ Solid-State Relay Terminal Block Specifications:
- Nominal input voltage UN: 24 V DC
- Input voltage range in reference to UN: 0.8 ... 1.2
- Switching threshold "0" signal in reference to UN: ≤ 0.4
- Switching threshold "1" signal in reference to UN: ≥ 0.8
- Typical input current at UN: 8 mA
- Typical response time: 1 µs
- Typical turn-off time: 2 µs
- Operating voltage display: Yellow LED
- Type of protection: Protection against polarity reversal
- Protective circuit/component: Polarity protection diode
- Transmission frequency: 100 kHz
- Power dissipation for nominal condition: 12 mW
- Output voltage range: 14 V DC ... 30 V DC
- Limiting continuous current: 50 mA
- Quiescent current: 15 mA
- Voltage drop at max. limiting continuous current: ≤ 2.2 V DC
- Output circuit: 3-conductor push-pull, ground referenced
- Connection name (input): Input side
- Connection method (input): Screw connection
- Stripping length (input): 8 mm
- Screw thread (input): M3
- Conductor cross section solid (input): 0.2 mm² ... 4 mm²
- Conductor cross section flexible (input): 0.2 mm² ... 2.5 mm²
- Conductor cross section AWG (input): 24 ... 12
- Torque (input): 0.5 Nm
- Connection name (output): Output side
- Connection method (output): Screw connection
- Stripping length (output): 8 mm
- Screw thread (output): M3
- Conductor cross section solid (output): 0.2 mm² ... 4 mm²
- Conductor cross section flexible (output): 0.2 mm² ... 2.5 mm²
- Conductor cross section AWG (output): 24 ... 12
- Torque (output): 0.5 Nm
- Test voltage input/output: 2.5 kV AC
- Mounting position: any
- Assembly instructions: In rows with zero spacing
- Operating mode: 100% operating factor
- Standards/regulations: IEC 60664, EN 50178, IEC 62103
- Rated surge voltage/insulation: Basic insulation
- Degree of pollution: 2
- Overvoltage category: II
- Width: 6.2 mm
- Height: 80 mm
- Depth: 56 mm
- Ambient temperature (operation): -20 °C ... 60 °C
- Ambient temperature (storage/transport): -20 °C ... 70 °C
- Packing unit: 10 STK
