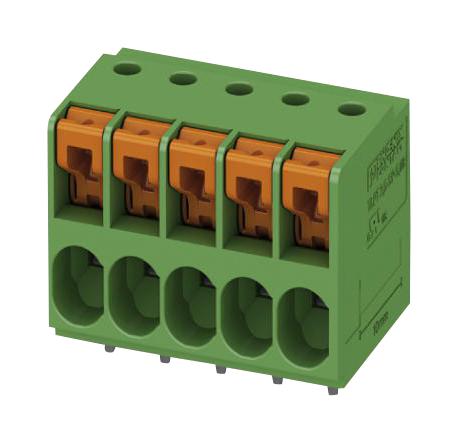

Phoenix Contact TDPT255SP508 PCB terminal block
The PCB terminal block TDPT 2,5/5-SP-5,08 is designed for reliable conductor connections in automation and control panels. It features a 5-position linear layout with a pitch of 5.08 mm, constructed from copper alloy and tin-plated for corrosion resistance. Suitable for wave soldering, it supports conductor cross sections from 0.2 mm² to 4 mm² for solid and flexible types, with a rated current of 32A and a voltage rating of 400V. The green housing measures 18 mm in length, 26.2 mm in width, and 19 mm in height, with a solder pin length of 3.5 mm, ensuring secure electrical contact and high durability for industrial applications.
Phoenix Contact TDPT255SP508 PCB terminal block Specifications:
- Pitch: 5.08 mm
- Number of positions: 5
- Rated current: 32A
- Rated insulation voltage: 400V
- Conductor cross section: solid 0.2 mm² ... 4 mm², flexible 0.2 mm² ... 4 mm², AWG 24...12
- Housing color: green
- Dimensions: Length 18 mm, Width 26.2 mm, Height 19 mm
- Solder pin length: 3.5 mm, Pin dimensions: 0.8 x 0.8 mm
- Conductor stripping length: 10 mm
- Material: Copper alloy, tin-plated
- Mounting: Wave soldering
- Compliance: IEC standards, UL 94V-0 flammability rating
Buy the Phoenix Contact Series TDPT PCB Terminal Block: TDPT255SP508
Purchase the Phoenix Contact PCB terminal block TDPT 2,5/5-SP-5,08 online today to ensure high-quality wire-to-board connections. Featuring push-in spring technology, a 5-position linear layout, and a pitch of 5.08 mm, it provides fast installation and reliable electrical contact. Made of durable copper alloy and tin-plated for corrosion resistance, it supports conductor cross sections from 0.2 mm² to 4 mm². With a rated current of 32A and voltage of 400V, it is ideal for industrial automation applications. Order online to benefit from quick delivery, proven quality, and excellent performance in demanding environments.
Get Phoenix Contact TDPT255SP508 today—designed for secure, reliable conductor connections in industrial control systems.
Frequently Asked Questions
Where can I buy Phoenix Contact TDPT255SP508?
You can click on the BUY or RFQ button to purchase TDPT255SP508 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part TDPT255SP508?
You can download the TDPT255SP508 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of TDPT255SP508?
Phoenix Contact
