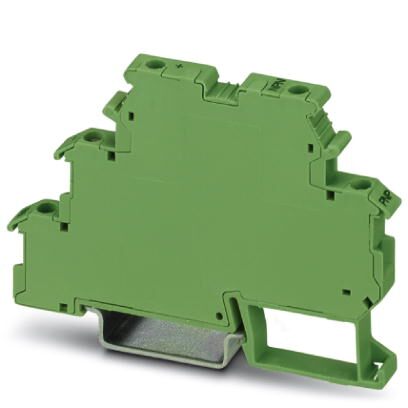

Phoenix Contact DEKTRINV Switching Amplifier Module
The PHOENIX CONTACT DEK-TR/INV is a switching amplifier module designed to invert signals between ground-switching NPN transistor outputs and positive-switching PNP outputs. This module is ideal for applications requiring signal conversion in industrial automation and control systems. It operates on a 20-30V DC supply, offers a continuous current of 200mA, and supports a transmission frequency of up to 15kHz. The DEK-TR/INV ensures reliable signal processing and compatibility with various industrial devices.
Phoenix Contact DEKTRINV Switching Amplifier Module Specifications:
- Packing unit: 1 pc
- Weight per Piece: 22.0 g
- Custom tariff number: 85364190
- Country of origin: China
- Width: 6.2 mm
- Height: 80 mm
- Depth: 56 mm
- Supply voltage range: 20 V DC ... 30 V DC (UV)
- Continuous current: 200 mA
- Residual voltage drop: < 1 V
- Leakage current: < 1 mA
- Max. transmission frequency: 15 kHz
- Switch-on threshold (NPN input): < 5 V
- Switch-off threshold (NPN input): > 15 V
- Min. limit values (NPN input): -2 V
- Max. limit values (NPN input): 26 V
- Switch-on threshold (PNP input): > 19 V
- Switch-off threshold (PNP input): < 9 V
- Conductor cross section solid min: 0.2 mm²
- Conductor cross section solid max: 4 mm²
- Conductor cross section flexible min: 0.2 mm²
- Conductor cross section flexible max: 2.5 mm²
- Conductor cross section AWG min: 24
- Conductor cross section AWG max: 12
- Connection method: Screw connection
- Stripping length: 8 mm
- Screw thread: M3
- Ambient temperature (operation): -20 °C ... 50 °C
- Ambient temperature (storage/transport): -20 °C ... 70 °C
- Connection in acc. with standard: CUL
- Standards/regulations: IEC 60664
- eCl@ss 4.0: 27371102
- eCl@ss 4.1: 27371102
- eCl@ss 5.0: 27371001
- eCl@ss 5.1: 27371001
- eCl@ss 6.0: 27371001
- eCl@ss 7.0: 27371001
- eCl@ss 8.0: 27379208
- ETIM 2.0: EC001437
- ETIM 3.0: EC001437
- ETIM 4.0: EC001437
- ETIM 5.0: EC002586
- UNSPSC 6.01: 30211916
- UNSPSC 7.0901: 39121515
- UNSPSC 11: 39121515
- UNSPSC 12.01: 39121515
- UNSPSC 13.2: 39121515
