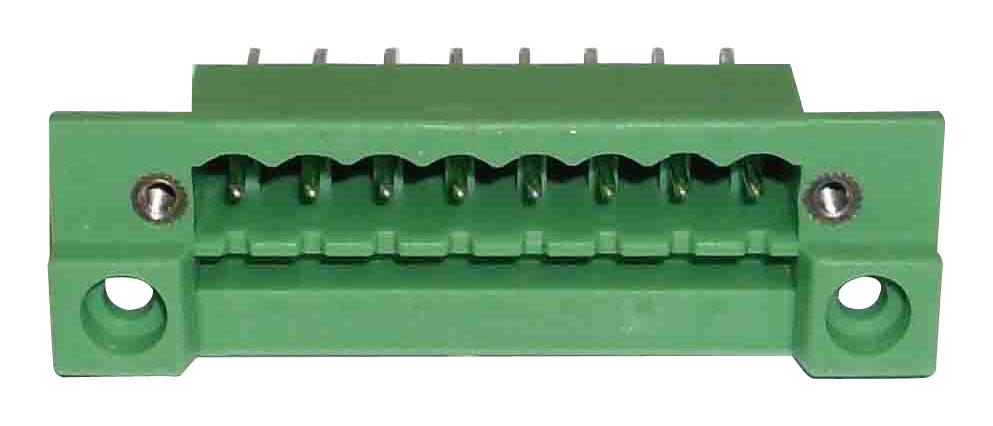

Phoenix Contact DFKMSTB258GF508 8 Position Plug Strip
The PHOENIX CONTACT DFK-MSTB 2,5/ 8-GF-5,08 plug strip provides a robust and versatile connection solution for various industrial applications. Designed to be compatible with MSTB and FKC plugs, this component allows for flexible wiring and easy integration into device or housing panels. It supports both solder and slip-on connection methods, catering to different assembly requirements. The plug strip's direct mounting capability, along with its ability to be secured with M3 x 10 screws, ensures a stable and reliable connection in demanding environments. Its green color and tin-plated contact surface contribute to its durability and performance.
Phoenix Contact DFKMSTB258GF508 8 Position Plug Strip Specifications:
- Nominal current: 12 A
- Rated voltage (III/2): 320 V
- Number of positions: 8
- Pitch: 5.08 mm
- Connection method: Solder/Slip-on connection
- Contact surface: Tin
- Mounting: Direct mounting
- Insulating material group: I
- Flammability rating according to UL 94: V2
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 2.5 mm²
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 12
- Rated surge voltage (III/3): 4 kV
- Rated surge voltage (III/2): 4 kV
- Rated surge voltage (II/2): 4 kV
- Rated voltage (III/3): 320 V
- Rated voltage (II/2): 630 V
- Connection in acc. with standard: EN-VDE
- Maximum load current: 12 A
- Nominal cross section: 2.5 mm²
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 9.04 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Dimension a: 35.56 mm
Buy the 0710235 PHOENIX CONTACT 8 Position Plug Strip | myMectronic
Purchase the PHOENIX CONTACT DFK-MSTB 2,5/ 8-GF-5,08 plug strip securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact DFKMSTB258GF508?
You can click on the BUY or RFQ button to purchase DFKMSTB258GF508 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part DFKMSTB258GF508?
You can download the DFKMSTB258GF508 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of DFKMSTB258GF508?
Phoenix Contact
