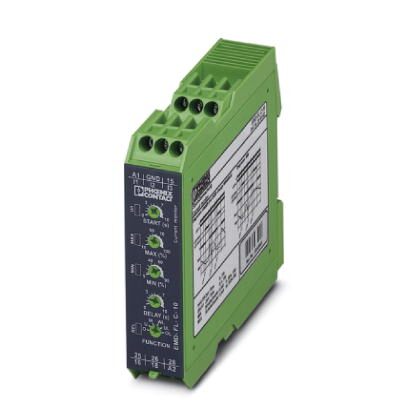

Phoenix Contact EMDFLC10 Monitoring Relay
The PHOENIX CONTACT EMD-FL-C-10 monitoring relay provides a reliable solution for monitoring critical network and system parameters. Designed for increasingly complex processes across various industries, this relay helps avoid errors or keep them within defined limits. It features a variable supply voltage range, adjustable settings via a front potentiometer, and startup/response delays to tolerate temporary deviations. The relay indicates operating states with LEDs and allows for error transmission to control systems or system shutdown, enhancing safety and system availability.
Phoenix Contact EMDFLC10 Monitoring Relay Specifications:
- Ambient temperature (operation): -25 °C ... 55 °C
- Ambient temperature (storage/transport): -25 °C ... 70 °C
- Input current range: 0 mA ... 100 mA, 0 A ... 1 A, 0 A ... 10 A
- Overload capacity: 800 mA (at IN= 100 mA), 3 A (at IN= 1 A), 12 A (at IN= 10 A)
- Maximum temperature coefficient: < 0.1 %/K
- Function: Overcurrent, undercurrent, window, error memory
- Min. setting range: 5 % ... 95 % (From IN)
- Max. setting range: 10 % ... 100 % (From IN)
- Setting range for response delay: 0.1 s ... 10 s
- Setting range for starting delay: 0 s ... 10 s
- Basic accuracy: ± 5 % (of scale end value)
- Setting accuracy: ≤ 5 % (of scale end value)
- Repeat accuracy: ≤ 2 %
- Recovery time: 500 ms
- Contact type: 2 floating PDT contacts
- Maximum switching voltage: 250 V AC
- Interrupting rating (ohmic load) max.: 750 VA, 1250 VA
- Output fuse: 5 A
- Supply voltage range: 24 V AC ... 240 V AC, 24 V DC ... 240 V DC
- Mechanical service life: Approx. 2 x 10^7 cycles
- Operating mode: 100% operating factor
- Rated insulation voltage: 300 V
- Conductor cross section flexible min.: 0.25 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Conductor cross section solid min.: 0.5 mm²
- Conductor cross section solid max.: 2.5 mm²
- Stripping length: 8 mm
