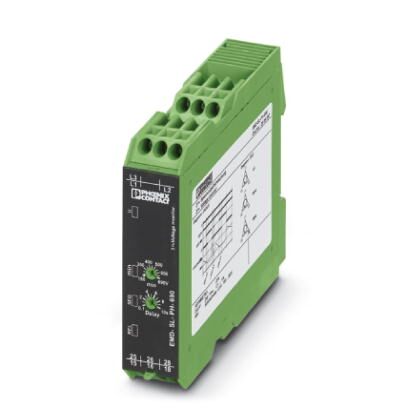

Phoenix Contact EMDSLPH690 Phase Monitoring Relay
The PHOENIX CONTACT EMD-SL-PH-690 is a robust phase monitoring relay crucial for maintaining system safety and availability in various industrial sectors, including mechanical engineering, chemical processing, and automation. This relay continuously monitors critical network parameters, preventing errors or limiting their impact. It utilizes colored LEDs to indicate operating states and provides a floating contact for transmitting error signals to control systems or triggering system shutdowns. The EMD-SL-PH-690 is suitable for monitoring phase sequence, phase failure, and asymmetry in three-phase voltages ranging from 208 to 690 VAC, ensuring reliable and cost-effective operation. Its adjustable response delays allow for temporary tolerance of measured values outside the monitoring range, minimizing false triggers.
Phoenix Contact EMDSLPH690 Phase Monitoring Relay Specifications:
- Packing unit: 1 STK
- GTIN: 4046356967198
- Weight per Piece: 160.000 g
- Custom tariff number: 85364900
- Country of origin: Austria
- Width: 22.5 mm
- Height: 90 mm
- Depth: 113 mm
- Ambient temperature (operation): -25 °C ... 70 °C (C300) / -25 °C ... 55 °C (B300)
- Ambient temperature (storage/transport): -25 °C ... 70 °C
- Nominal input voltage UN: 690 V (3~ 208 V ... 690 V)
- Input voltage range: 177 V ... 794 V (3~)
- Function: Undervoltage, phase sequence, phase failure
- Min setting range of the voltage threshold value: 177 V AC
- Max. setting range of the voltage threshold value: 794 V AC
- Setting range for response delay: 0.1 s ... 10 s
- Basic accuracy: ≤ 3 % (of scale end value)
- Setting accuracy: ≤ 5 % (of scale end value)
- Repeat accuracy: ≤ 2 %
- Asymmetry: 25 %
- Recovery time: > 500 ms
- Contact type: 2 floating PDT contacts
- Maximum switching voltage: 400 V AC
- Interrupting rating (ohmic load) max.: 1250 VA (5 A/250 V AC at +55 °C)
- Output fuse: 5 A (fast-blow)
- Supply voltage: ±15 % (= measuring voltage)
- Mechanical service life: 20 x 10^6 cycles
- Operating mode: 100% operating factor
- Mounting position: any
- Assembly instructions: on standard DIN rail NS 35 in accordance with EN 60715
- Housing insulation material: Polyamide PA, self-extinguishing
- Color: green
- Conformance: CE-compliant
- UL, USA/Canada: UL/C-UL listed UL 508
- Conductor cross section flexible min.: 0.5 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Conductor cross section solid min.: 0.5 mm²
- Conductor cross section solid max.: 2.5 mm²
- Conductor cross section AWG min.: 20
- Conductor cross section AWG max.: 14
- Stripping length: 8 mm
- Connection method: Screw connection
- Electromagnetic compatibility: Conformance with EMC Directive 2004/108/EC
- Noise emission: EN 61326-1
- Noise immunity: EN 61326-1
- Low Voltage Directive: Conformance with LV directive 2006/95/EC
- UL Listed: FILE E 172140
- cUL Listed: FILE E 172140
- EAC: RU C- EAC DE.A*30.B.01082
- cULus Listed:
