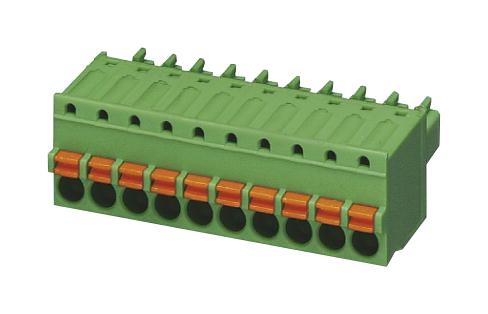

Phoenix Contact FKMCP1512ST381 PCB Connector
The FK-MCP 1.5/12-ST-3.81 is a high-quality printed circuit board connector designed for quick, reliable connections in industrial electronics. It features 12 positions, a pitch of 3.81 mm, and push-in spring connection technology for tool-free installation. Made from flame-retardant PA with a tin contact surface, it ensures long-lasting stable contact. Suitable for applications requiring rated voltage of 160 V and current of 8 A per position, it’s ideal for compact, efficient electronic assemblies in automation, control systems, and machinery. The connector complies with EN-VDE standards and offers easy testing options, enhancing maintenance and troubleshooting.
Phoenix Contact FKMCP1512ST381 PCB Connector Specifications:
- Number of positions: 12
- Pitch: 3.81 mm
- Rated voltage: 160 V
- Rated current: 8 A
- Connection method: Push-in spring connection
- Contact surface: Tin
- Material: PA (flame-retardant)
- Dimensions: Length 21 mm, Height 12.4 mm, Width 46.51 mm, Dimension a 41.91 mm
- Insulating Material Group: PA
- Flammability rating: UL 94V-0
- Stripping length: 9 mm
- Conductor cross section: solid min. 0.14 mm², max. 1.5 mm²
- Flexible conductor min.: 0.14 mm², max.: 1.5 mm²
- Flexible with ferrule without plastic sleeve min.: 0.25 mm², max.: 1.5 mm²
- Flexible with ferrule with plastic sleeve min.: 0.25 mm², max.: 0.75 mm²
- AWG: min. 28, max. 16
- Standards: EN-VDE, UL 94V-0
Buy the Phoenix Contact Series FK-MCP PCB Connector: FKMCP1512ST381
Order the Phoenix Contact FK-MCP 1.5/12-ST-3.81 PCB connector online today for reliable wiring in industrial electronics. Featuring 12 positions, a 3.81 mm pitch, and a push-in spring connection for quick setup without tools. Made of flame-retardant PA with tin contacts, it offers stable long-term contact performance and meets EN-VDE standards. Ideal for automation, control systems, and compact electronic modules, it simplifies installation, testing, and maintenance. Trust Phoenix Contact for high-quality, durable connection solutions that ensure safety and efficiency in your electronic projects.
Get Phoenix Contact FK-MCP 1.5/12-ST-3.81 today—built for precision and long-lasting durability in electronic assemblies.
Frequently Asked Questions
Where can I buy Phoenix Contact FKMCP1512ST381?
You can click on the BUY or RFQ button to purchase FKMCP1512ST381 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part FKMCP1512ST381?
You can download the FKMCP1512ST381 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of FKMCP1512ST381?
Phoenix Contact
