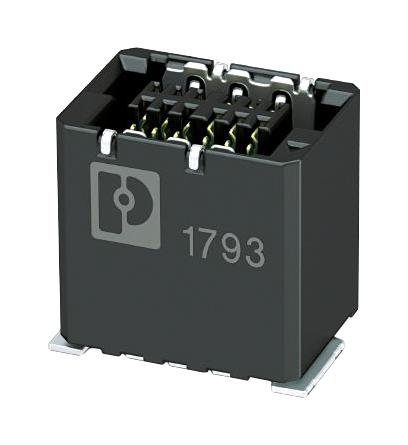

Phoenix Contact FP0880FVSH785 FINEPITCH PCB Connector
The high-precision FINEPITCH series board-to-board connectors offer flexible, space-saving, and reliable signal and data transmission solutions. Available in 0.8 mm and 1.27 mm pitches, these connectors support high-speed data transfer up to 16 Gbps and feature hermaphroditic double contacts with ScaleX technology for enhanced robustness and vibration-proof connections. They are designed with shielding for excellent electromagnetic compatibility, employ automated soldering options, and accommodate various stack heights from 6 to 12 mm, making them ideal for complex PCB arrangements in industrial automation and electronic devices.
Phoenix Contact FP0880FVSH785 FINEPITCH PCB Connector Specifications:
- Pitch: 0.8 mm and 1.27 mm
- Number of positions: 12, 16, 20, 26, 32, 40, 50, 68, 80
- Nominal current: 1.4 A at 20°C
- Insulation resistance: Min. 5 GΩ
- Contact resistance: Max. 20 mΩ
- Test voltage: 500 VAC
- Max. data transmission speed: Up to 16 Gbps
- Operating temperature: -55°C to +125°C
- Stack height: 6 to 12 mm
- Insertion and withdrawal force: <12 N per contact
- Approval: UL 1977
- Durability: 500 insertion cycles
- Shielding: Yes (for shielded variants)
- Material: Cu alloy, Ni, Au, Sn coatings
- Creepage distance: Min. 0.25 mm
- Flammability: UL 94 V-0
- Processing: SMT soldering, tape-on-reel packaging
- Environmental compliance: WEEE/RoHS
Buy the Phoenix Series FINEPITCH PCB Connectors: FP0880FVSH785
Purchase the Phoenix FINEPITCH FP0880FVSH785 online today and benefit from reliable high-speed signal and data transmission. These space-saving connectors support up to 16 Gbps data rates, feature robust double-contact design with ScaleX technology for vibration resistance, and are suitable for automated SMT assembly. With various stack heights, shielded and unshielded options, they are ideal for complex PCB arrangements in industrial applications, ensuring excellent electromagnetic compatibility, durability over 500 cycles, and easy integration into your device design for long-lasting performance.
Get Phoenix FINEPITCH FP0880FVSH785 today—built for high-speed data transmission and industrial reliability.
Frequently Asked Questions
Where can I buy Phoenix Contact FP0880FVSH785?
You can click on the BUY or RFQ button to purchase FP0880FVSH785 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part FP0880FVSH785?
You can download the FP0880FVSH785 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of FP0880FVSH785?
Phoenix Contact
