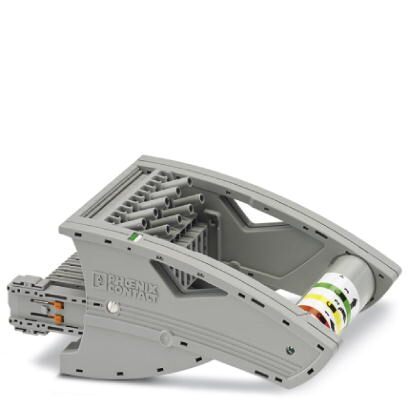

Phoenix Contact FTPR310S Test Plug Terminal Block
The Phoenix Contact FTPR-3/10S test plug is designed for safe and efficient testing of terminal blocks. Featuring a twist grip mechanism, it provides guided operation, minimizing errors and ensuring user safety. The robust switch contact is engineered for demanding environments, guaranteeing reliable signal transmission even after repeated use. Its modular design and standardized CLIPLINE accessories contribute to cost-effectiveness and space-saving installation. The plug's construction incorporates features like an automatically generated transformer short circuit and a shock-proof design, further enhancing safety during measurement. Suitable for a wide range of industrial applications, the FTPR-3/10S offers a reliable solution for testing and maintenance.
Phoenix Contact FTPR310S Test Plug Terminal Block Specifications:
- Number of positions: 10
- Number of levels: 1
- Number of connections: 20
- Potentials: 10
- Nominal cross section: 6 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 5 kV
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation for nominal condition: 1.31 W
- Maximum load current: 20 A
- Nominal current IN: 20 A
- Nominal voltage UN: 400 V AC/DC
- Open side panel: No
- Relative insulation material temperature index (Elec., UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 125 °C
- Static insulating material application in cold: -60 °C
- Behavior in fire for rail vehicles (DIN 5510-2): Test passed
- Flame test method (DIN EN 60695-11-10): V0
- Oxygen index (DIN EN ISO 4589-2): >32 %
- NF F16-101, NF F10-102 Class I: 2
- NF F16-101, NF F10-102 Class F: 2
- Surface flammability NFPA 130 (ASTM E 162): passed
- Specific optical density of smoke NFPA 130 (ASTM E 662): passed
- Smoke gas toxicity NFPA 130 (SMP 800C): passed
- Calorimetric heat release NFPA 130 (ASTM E 1354): 27,5 MJ/kg
- Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
- Width: 112.3 mm
- Length: 86 mm
- Pitch: 8.2 mm
- Conductor cross section flexible min.: 0.5 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Min. AWG conductor cross section, flexible: 20
- Max. AWG conductor cross section, flexible: 14
- Note: The conductor cross section depends on the cable lug used
