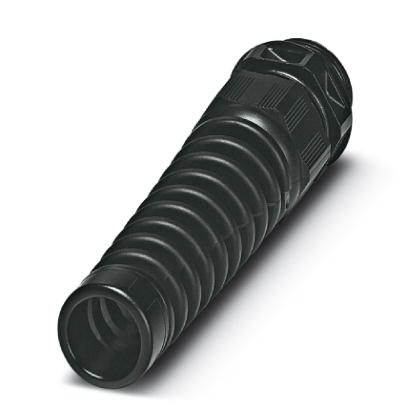

Phoenix Contact GINBM12S68NPEPDSBK M12 Cable Gland
The PHOENIX CONTACT G-INB-M12-S68N-PEPDS-BK cable gland provides a secure and sealed connection for cables in industrial settings. Its M12 thread and robust design ensure a tight fit, while the bend protection sleeve safeguards the cable from damage. The gland is suitable for applications requiring protection against moisture and dust, and its halogen-free construction meets stringent environmental standards. It is commonly used in automation, control systems, and other industrial equipment where reliable cable connections are essential.
Phoenix Contact GINBM12S68NPEPDSBK M12 Cable Gland Specifications:
- Application: Standard
- External cable diameter: 3 mm ... 7 mm
- Shielding: No
- Connecting thread: M12
- Color: jet black
- Length: 72 mm
- Wrench size, union nut: 16 mm
- Wrench size, support: 16 mm
- Hexagon angular dimension: 18 mm
- Length of the connecting thread: 9 mm
- Feed-through hole diameter: 12.1 mm ... 12.2 mm
- Ambient conditions - Degree of protection: IP68 (5 bar / 0.5 h), IP69 (DIN EN 60529 / IEC 60529)
- Ambient temperature (operation): -40 °C ... 100 °C (static)
- No. of conductors: 1
- Thread type on connection side: M12
- Thread pitch: 1.5 mm
- Torque (Union nut): 2 Nm
- Torque (Support): 2 Nm
- Impact category: 2
- Execution of the strain relief: A
- Packing unit: 1 STK
- Minimum order quantity: 10 STK
- Weight per Piece (excluding packing): 9.780 g
- Custom tariff number: 39269097
- Country of origin: Germany
- UL Recognized: E179850
- cUL Recognized: E179850
- GOST-R: POCC DE.A*98.H12052
- cULus Recognized: UL
Buy the G-INB-M12-S68N-PEPDS-BK PHOENIX CONTACT M12 Cable Gland | myMectronic
Purchase the PHOENIX CONTACT G-INB-M12-S68N-PEPDS-BK cable gland online for a secure and reliable connection.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact GINBM12S68NPEPDSBK?
You can click on the BUY or RFQ button to purchase GINBM12S68NPEPDSBK from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part GINBM12S68NPEPDSBK?
You can download the GINBM12S68NPEPDSBK datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of GINBM12S68NPEPDSBK?
Phoenix Contact
