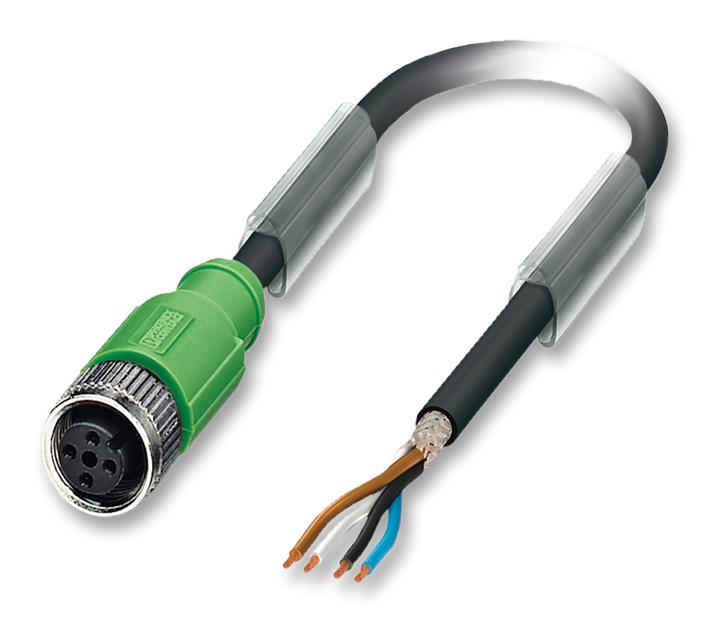

Phoenix Contact SAC4P100PURM12FSSH Sensor/Actuator Cable
The sensor/actuator cable SAC-4P-10,0-PUR/M12FS SH offers reliable signal transmission with 4 positions, shielded, and a 10-meter length. Manufactured with halogen-free, robust PUR insulation, it is suitable for industrial environments with electromagnetic interference. The cable features a black-gray outer sheath, IP65/IP67 protection, and tinned copper braided shielding for EMI immunity. Its flexible, oil-resistant, and flame-retardant design makes it ideal for automation systems, machinery, and robust sensor-actuator connections, supporting over 100,000 bending cycles for durable performance.
Phoenix Contact SAC4P100PURM12FSSH Sensor/Actuator Cable Specifications:
- Cable Length: 10 meters
- Number of Positions: 4
- Conductor Cross Section: 4x 0.34 mm² (signal line)
- AWG Signal Line: 22
- Outer Sheath: PUR halogen-free, black-gray RAL 7021, approx. 1mm thick
- External Diameter: 5.9mm +0.2mm
- Shielding: Tinned copper braided shield, 85% coverage
- Bending Radius: Fixed installation 5xD, flexible 10xD
- Ambient Temperature: -25°C to +80°C, operational -40°C to +80°C
- Voltage Rating: <300V, Test Voltage: 3000V
- Material: Copper contacts with Ni/Au surface, TPU GF contact carrier
- Inflammability Class: UL 94 HB
- Standards: IEC 61076-2-101, UL AWM style 20549 / 10493
- Resistance: Insulation resistance >100 MΩ, conductor resistance max. 58 Ω/km
- Fixture Torque: 0.4 Nm
- Degree of Protection: IP65/IP67
- Pollution Degree: 3
- Resistance to Oil, Salt Water, Microbial, UV, and chemicals, flame resistant, halogen-free
Buy the Phoenix Contact SAC-4P-10,0-PUR/M12FS SH – Reliable Sensor/Actuator Cable for Industrial Applications
Get the Phoenix Contact SAC-4P-10,0-PUR/M12FS SH sensor/actuator cable today. This shielded, halogen-free, 10-meter cable with IP65/IP67 protection is perfect for industrial automation, sensors, and actuators. Its robust PUR insulation, high flexibility, and EMI shielding ensure reliable signal transmission even in harsh environments. Suitable for industrial applications, it supports over 100,000 bending cycles and resists oil, chemicals, and UV rays. Secure your automation setup with this durable, easy-to-install cable for long-lasting performance.
Order your Phoenix Contact SAC-4P-10,0-PUR/M12FS SH sensor/actuator cable today and ensure reliable, durable connections in your industrial projects.
