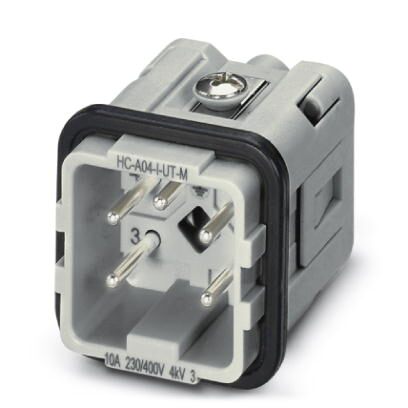

Phoenix Contact HCA04IUTM 4+PE Contact Insert
The PHOENIX CONTACT HC-A04-I-UT-M contact insert is a crucial component for creating robust and reliable electrical connections within HC-D7 housings. Designed for industrial environments, this insert offers 4+PE positions, ensuring both power and grounding capabilities. The screw connection method provides a secure and dependable connection for conductors ranging from 0.5 mm² to 2.5 mm². Rated for 230/400V and 16A, it's suitable for a wide range of applications, including power distribution, automation systems, and machinery control. The insert's robust construction and IP65 sealing screw contribute to its durability and protection against environmental factors, making it ideal for demanding industrial settings. It is compatible with a variety of applications requiring secure and reliable power transmission.
Phoenix Contact HCA04IUTM 4+PE Contact Insert Specifications:
- Packing unit: 1 pc
- GTIN: 4046356284967
- Weight per Piece (excluding packing): 16.000 g
- Custom tariff number: 85366990
- Country of origin: China
- Note: for housing HC-D7
- Connection method: Screw connection
- Tightening torque: 0.25 Nm ... 0.5 Nm
- Screwdriver blade: 0.4 x 2.5 mm
- Number of connections per position: 1
- Degree of pollution: 3
- Overvoltage category: III
- Number of positions: 4+PE
- Insertion/withdrawal cycles: ≥ 500
- Size: D7
- Contact numbering: 1 - 4
- Conductor cross section: 0.5 mm² ... 2.5 mm²
- Connection cross section AWG: 20 ... 14
- Stripping length of the individual wire: 5 mm
- Assembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required
- Connection: Already includes one IP65 sealing screw
- Ambient temperature (operation): -40 °C ... 125 °C
- Seal material: NBR, conductive
- Contact material: Copper alloy
- Contact surface material: Ag
- Contact carrier material: PC
- Rated voltage for power contacts: 230/400 V
- Rated voltage (III/3): 230 V (Conductor-PE) / 400 V (Conductor-Conductor)
- Rated surge voltage: 4 kV
- Rated current: 16 A
- Flammability rating according to UL 94: V0
- REACh SVHC: Lead 7439-92-1
- China RoHS: Environmentally Friendly Use Period = 50 years
